Pressure Control Valve - Complete Set

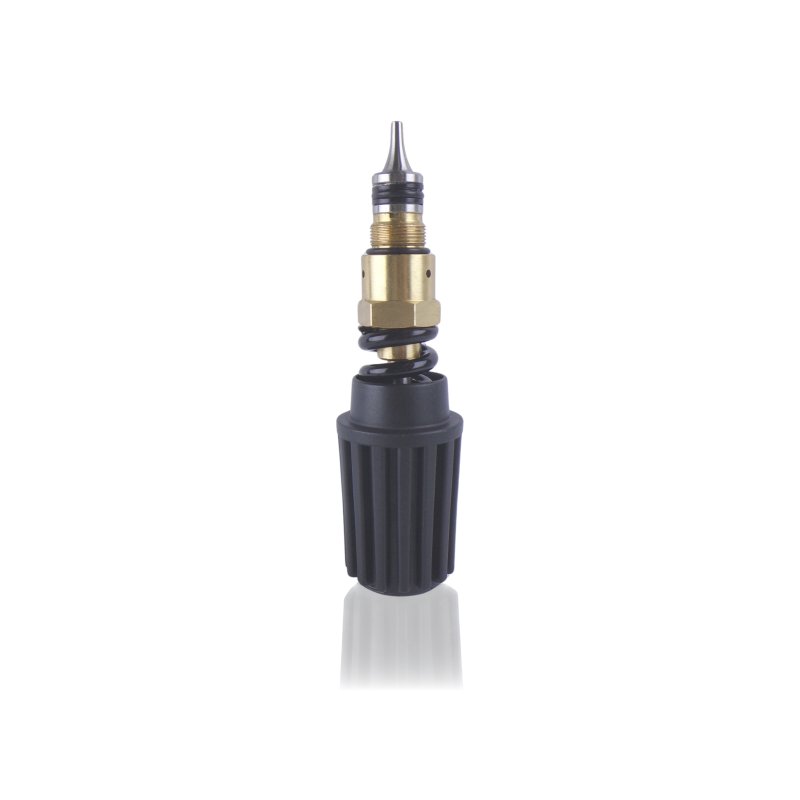

Valve 40490 is a complete repair or replacement set for the working pressure regulation assembly in the Kranzle pressure washer pump. The set contains all components required for a full rebuild of the assembly:

• control piston 14134,
• special piston guide 42105,
• Parbaks seals 16mm (13159) and 8mm (14123),
• O-ring 16x2 (13150),
• black valve spring 14125,
• spring pressure disc 14126,
• needle bearing 14146,
• securing pin 3x14mm 14148,
• knob 40457 with cap 40458,
• two M8x1 nuts (14144),
• self-locking nut 14152.

The complete set eliminates the need to source and order components separately.

Application

The valve is mounted in the hydraulic block of the pump, on the path between the pressure chamber and the working outlet. The control piston 14134, guided in guide 42105, responds to pressure on the gun side – with the gun open, water flows through the working circuit; with the gun closed, the piston switches flow to bypass and water returns to the inlet circuit without loading the pump pistons. Knob 40457 changes the pre-tension of valve spring 14125, which sets the switching pressure between working mode and bypass. Needle bearing 14146 allows smooth rotation of the knob under spring load without excessive resistance. Parbaks seals 16mm and 8mm and O-ring 16x2 seal the control piston on both sides of its guide.

Symptoms – when to replace

• Pressure regulation no longer possible – the knob turns without effect or pressure remains constant regardless of the setting.
• The pump does not switch to bypass after the gun is closed – pressure rises above normal, and the motor operates under increased load in the closed circuit.
• Spontaneous switching to bypass during operation with the gun open – working pressure drops and recovers irregularly without any change to the knob setting.
• Water leak from the valve area under working pressure – worn Parbaks seals or the control piston O-ring.
• Hard, seized or uneven knob rotation – worn needle bearing 14146 or damaged knob mechanism.

How to select the right part

Identify by reference number 40490. Regulating valves differ between pump models in pressure regulation range, control piston geometry and connection configuration – a replacement with a different number may not fit physically or may give a different regulation range.

If only one component of the set is damaged – for example, only knob 40457 or cap 40458 – check whether these parts are available as separate items. When the control piston, guide or seals are damaged, replacing the complete set 40490 is more reliable than sourcing individual components for a worn body.

After installation, always set the working pressure from scratch – a new component has factory spring tension which may differ from the previous setting.

Compatibility

Complete repair set for the regulating valve in Kranzle pressure washer pumps. Verify the exact compatibility range by reference number 40490.

[faq]

What exactly does set 40490 contain – is it sufficient for a full valve replacement without buying anything extra?|Set 40490 contains 13 components: control piston 14134, special piston guide 42105, Parbaks 16mm (13159), Parbaks 8mm (14123), O-ring 16x2 (13150), black valve spring 14125, spring pressure disc 14126, needle bearing 14146, spring pin 14148, knob 40457, knob cap 40458, two M8x1 nuts (14144) and self-locking nut 14152. The set covers all functional components of the assembly – when replacing the complete valve there is no need to purchase seals or fasteners separately.

What does needle bearing 14146 do in this valve, and how can its wear be identified?|Needle bearing 14146 transfers the axial load of the valve spring onto knob 40457, allowing smooth rotation without having to overcome the full spring friction. Without the bearing, rotating the knob under full spring tension would be difficult and would lead to rapid wear of the regulation mechanism. A worn bearing presents as hard, rough or uneven resistance when turning the knob – particularly noticeable at a high pressure setting when the spring is heavily compressed.

Is pressure calibration required after replacing valve 40490, and how is it carried out?|Yes – after replacing the valve, always set the working pressure from scratch. Connect a pressure gauge to the working outlet, start the pump with the gun open and turn the knob until the pressure matches the specification for the particular washer model. Tightening the knob increases pressure; loosening it reduces pressure. Set with the motor at full speed and the pump at a stable temperature. Do not turn the knob sharply with the gun closed – a sudden change in spring tension during bypass operation can cause pressure spikes when the gun is next opened.
