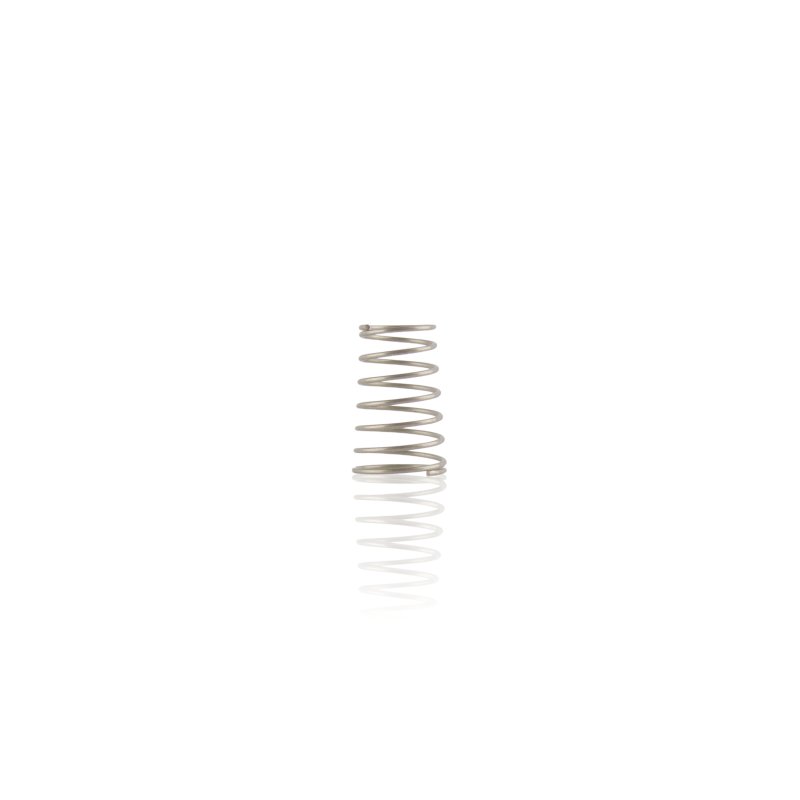

Ball Check Valve Spring

In the ball check valve, the spring is responsible for pressing the closing element into the correct working position and maintaining proper operation of the entire system. Its parameters determine the stability of valve operation, sealing tightness, and the repeatable return of the ball after changes in flow conditions.

APPLICATION

Springs of this type are used during repairs, inspections, and service work related to ball check valves in pressure systems and flow control subassemblies. The component operates where controlled pressure on the ball and correct valve response during equipment operation are required.

In service practice, replacement of the spring may be necessary when the valve stops operating stably, the pressure weakens, or the component loses its mechanical properties. In systems operating under load, even a slight change in spring characteristics may affect the way flow is shut off, system tightness, and cooperation with the other valve components.

SYMPTOMS - WHEN IT IS WORTH REPLACING

• the check valve does not close properly
• the ball does not return to the correct working position
• pressure in the system is clearly weakened
• the spring is permanently deformed, shortened, or damaged
• the subassembly operates unstably despite no visible damage to the other parts

HOW TO CHOOSE THE CORRECT COMPONENT

The spring should be selected based on its working dimensions and compatibility with the specific ball check valve. Important factors include free length, diameter, coil arrangement, seating method, and comparison with the removed part. For elements operating inside a valve, selection accuracy has a direct impact on pressure force and correct mechanism function.

Before installation, it is worth checking:

• spring length
• outer and inner diameter
• number and arrangement of coils
• method of seating in the valve seat
• compatibility with the previously used part and the service documentation

Accurate matching is crucial, because an incorrect spring may cause too little or too much pressure, valve operating disturbances, or problems with correct installation.

COMPATIBILITY

The compatibility of this part should be assessed based on the technical parameters specified for the particular ball check valve and the actual design of the mounting point. Not only the dimensions matter, but also the spring’s operating characteristics and its cooperation with the ball and the other valve elements. A similar appearance alone does not guarantee fitment, because design differences may affect tightness and stability of system operation.

[faq]

What is the ball check valve spring used for?|Its purpose is to provide the correct pressure on the ball and maintain proper valve operation during flow and shut-off of the system.

How can I check whether this spring is the correct one?|You should compare its dimensions, design, and seating method with the removed part and confirm compatibility with the technical documentation for the specific valve.

Can a substitute be used instead of the original spring?|Yes, but only if the substitute has identical working parameters and operates with the same characteristics at the specific mounting point.

What symptoms indicate wear of the check valve spring?|The most common signs are weakened pressure, failure of the valve to close properly, spring deformation, or unstable operation of the subassembly.

Can a damaged spring affect valve tightness?|Yes. Incorrect pressure on the ball may disrupt check valve operation, reduce tightness, and cause unstable operation of the entire system.

[/faq]
