Turbokiller 40 Guard Rear Rubber Cap

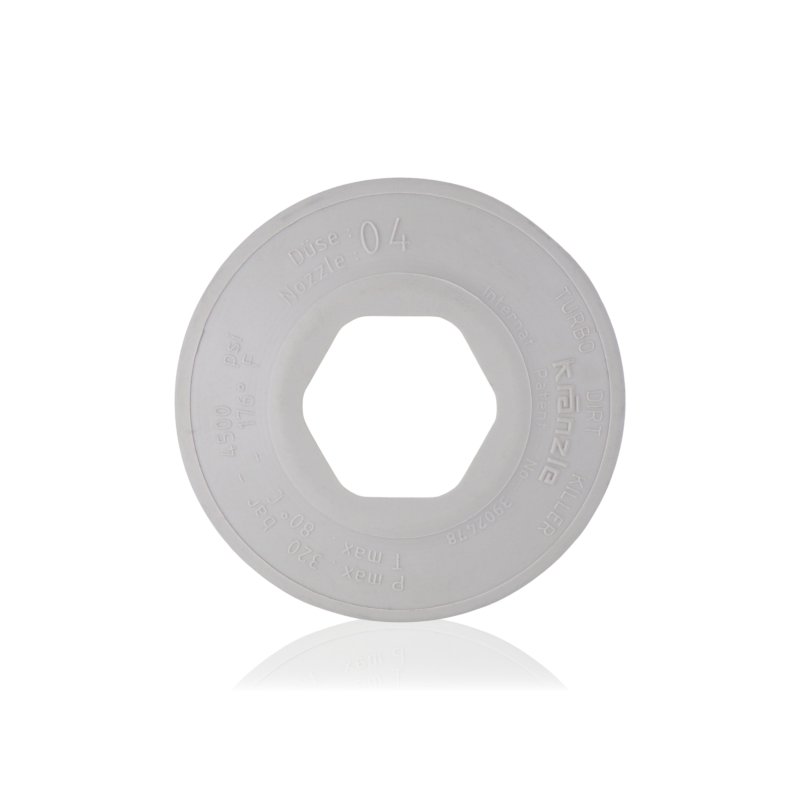

Cap 4154004 is a rubber end cap closing the Kranzle Turbokiller rotary nozzle guard on the lance side, intended for nozzle size 40. The grey colour serves an identification function – it denotes size 40 in the colour coding system for Kranzle Turbokiller rotary accessories. The cap seals the rear edge of the guard and protects the space between the guard and the nozzle body from contaminants entering at the inlet side at the lance connection.

Application

The cap is fitted on the rear edge of the Turbokiller size 40 nozzle rubber guard, on the lance side. Closing the rear opening of the guard prevents sand, dirt and abrasive particles from entering the space between the guard and the nozzle body – contamination in this space abrades the body and can impede free rotation of the rotary head. The rubber material of the cap adapts flexibly at different working angles with the lance.

Replaced when the cap cracks, is lost, or hardens in a way that prevents a tight seal at the rear section of the Turbokiller 40 nozzle guard.

Symptoms – when to replace

• Visible cracking or crumbling of the rubber – the rear edge of the guard is no longer sealed and contaminants enter the space between the guard and the nozzle body.
• Cap slides or falls off during operation – loss of secure seating on the rear edge of the Turbokiller 40 guard.
• Rubber hardened and brittle – loss of elasticity, the cap no longer seals the lance connection when the working angle changes.
• Cap missing entirely – the space between the guard and the nozzle body is open on the lance side.

How to select the right part

Two parameters must match simultaneously: Turbokiller nozzle size 40 and component type – rear cap. Grey is the size 40 code – do not order the cap by colour alone without confirming the nozzle size. Cap 4154004 (size 40) does not fit the size 45 guard (415405) or size 70 guard (415406) – different sizes, different diameters at the rear edge of the guard.

Identify by reference number 4154004. When replacing the cap, also assess the condition of the main guard – if the rear edge of the guard is deformed or cracked, a new cap will not seal this area without replacing the guard.

Compatibility

Rubber rear cap for the Kranzle Turbokiller rotary nozzle guard, size 40, grey. Not a substitute for the Turbokiller 45 cap (415405, green) or Turbokiller 70 cap (415406, blue). Verify the exact compatibility range by reference number 4154004 and Turbokiller nozzle size 40.
