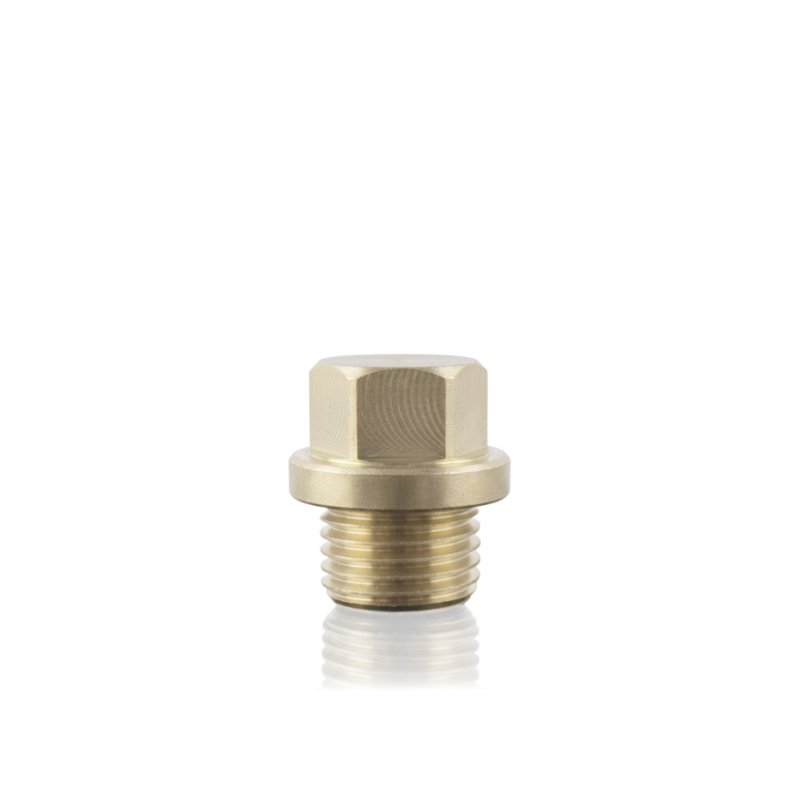

Brass Sealing Plug R1/4"

Plug 42103 is a component closing an R1/4" bore in the valve block or pump housing of the Kranzle pressure washer. The external taper thread R1/4" (BSPT – British Standard Pipe Taper) screws into the bore and seals through progressively tighter thread engagement when tightened – without a separate face seal. The R1/4" thread is one of the most common inch sizes in hydraulic and pneumatic systems – used at gauge ports, auxiliary valves and small pump service bores.

Application

The plug is mounted in an unused R1/4" bore in the valve block, head or pump housing – closing an inactive hydraulic channel, service port or connection not required in the given pump configuration. Taper thread R1/4" appears in Kranzle pump circuits at gauge ports, safety valves and auxiliary connections. When the pump is configured without a connected gauge or additional accessories, the R1/4" bore is blanked with this plug.

Replaced when the thread is damaged, the connection leaks, or the plug body is mechanically damaged.

Symptoms – when to replace

• Water leak at the R1/4" thread during pump operation – the taper thread does not seal correctly with damaged or worn flanks.
• Plug has loosened under pump vibration – insufficient tightening torque or worn taper thread flanks.
• Visible corrosion or mechanical damage to the plug body.
• Stripped or damaged head hex – a secure grip with a wrench is no longer possible without risk of deforming the head edges.

How to select the right part

Identify by reference number 42103 and thread R1/4". Taper thread R1/4" (BSPT) and parallel thread G1/4" (BSPP) have identical external diameters and are easy to confuse. Check the thread type in the pump bore: with a taper thread the plug enters progressively tighter with each successive turn; with a parallel thread the resistance is uniform throughout. A BSPT plug screwed into a BSPP bore will not seal correctly even with PTFE tape.

R1/4" is a smaller size than R1/2" (42032) – they are not interchangeable despite the identical taper thread type. Before ordering, confirm the thread size in the pump bore by measuring or comparing with the removed plug.

Compatibility

Sealing plug for R1/4" bores in the valve block or housing of Kranzle pressure washer pumps. External taper thread R1/4" (BSPT). Not a substitute for R1/2" plug (42032) – different thread size. Verify the exact compatibility range by reference number 42103.
