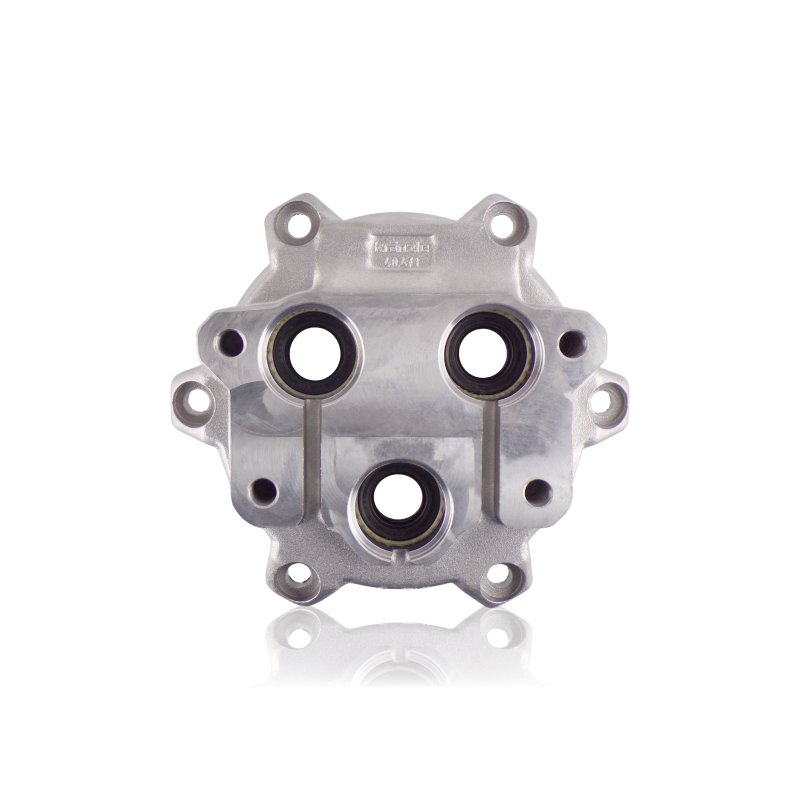

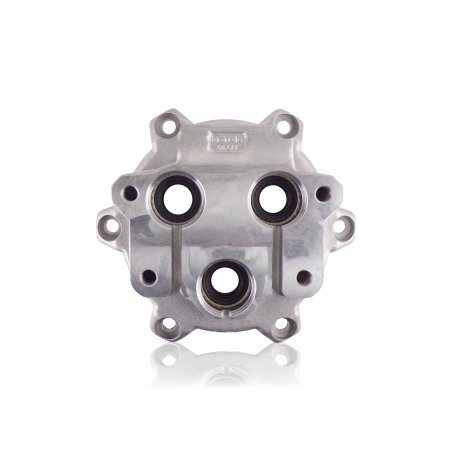

Piston Guide 18mm

Proper piston guidance in the pump has a direct effect on the even operation of the entire drive, which is why the condition of the guide determines not only correct installation, but also the durability of cooperating parts. In the 18 mm version, this is a component intended for systems in which maintaining the correct movement axis and stability of the working assembly is of key importance.

APPLICATION

The piston guide works in the pump drive, where it maintains the correct position of moving components during cyclic operation of the system. Its task is to limit deviations that could cause uneven loading, faster wear of adjacent parts, or deterioration of the pump’s operating smoothness.

In service practice, this type of part is replaced when, after dismantling the drive, signs of wear become visible, play appears in the guidance, or the pump begins to operate less stably than before. The input data indicates that the 18 mm guide is used, among others, in some pumps from the Profi and CA series, provided that the specific version of the drive assembly is compatible.

SYMPTOMS - WHEN IT IS WORTH REPLACING

• the pistons operate unevenly or signs of deteriorated guidance appear
• wear marks or working traces are visible on the guiding surfaces
• play is present in the system and affects the stability of working movement
• cooperating parts wear faster than normal
• after pump repair, correct axial alignment of the assembly cannot be restored

HOW TO CHOOSE THE CORRECT COMPONENT

Selection of the piston guide should be based on the actual working dimensions and compatibility with the design of the specific pump drive. In this case, the 18 mm diameter, the geometry of the part, and the method of seating in the assembly must be confirmed. It is also worth comparing the new element with the guide removed from the device, paying attention to the arrangement of the guiding surfaces and the mounting points.

Before installation, it is worth checking:

• 18 mm diameter
• design and shape of the part
• method of seating in the pump drive
• compatibility with the previously used part
• compatibility with the service diagram of the given model

Accurate matching is crucial, because an incorrect guide may cause non-axial piston operation, excessive load on cooperating parts, and accelerated wear of the entire drive.

COMPATIBILITY

Compatibility of this part should be assessed based on the 18 mm diameter, the guide design, and the construction of the specific pump. The indicated Profi and CA series may be treated as a general reference for application, but final selection is best confirmed by dimensions, the parts diagram, and comparison with the removed element. For guiding components, similar appearance is not enough to confirm compatibility if the geometry or seating method differs.

[faq]

What is the piston guide responsible for in the pump drive?|Its task is to maintain the correct movement path of the pistons so that the working elements operate axially and cooperate evenly with the other parts of the system.

Is the 18 mm size the most important factor when selecting this part?|It is one of the key parameters, but not the only one. Besides the diameter, the design of the guide, the mounting method, and compatibility with the specific pump version must also be checked.

How can piston guide wear be identified?|Most often by wear marks on the guiding surfaces, the appearance of play, uneven piston operation, or accelerated wear of cooperating parts.

Does a damaged guide affect only the pistons themselves?|No. Its wear may affect the entire pump drive, because it worsens the movement geometry and increases the load on the other elements operating in the system.

Can the part be selected only based on the information that it fits the Profi or CA series?|No. This information should be treated as a guideline, but final fitment should be confirmed by diameter, part design, and compatibility with the specific pump diagram.
