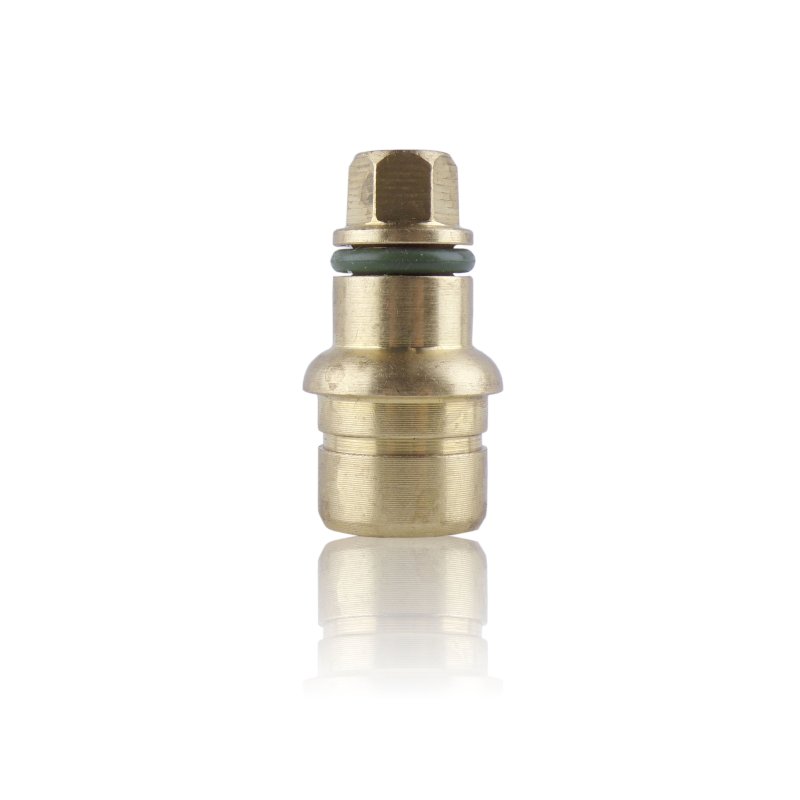

Trigger-gun connection end 1/4"

The 1/4" female trigger-gun connection end is a high-pressure gun accessory part with an internal 1/4" thread. It is used to make a sealed threaded connection between the gun and a hose, adapter, or another component in the flow path-depending on the accessory configuration. In service, it is most often replaced when the thread is damaged, contact surfaces are worn, or recurring leaks occur at the connection point.

MPN / reference: 132771
Thread: 1/4" female (internal)

APPLICATION

The connection end is used in typical accessory service work:

• repairing the gun connection in a high-pressure circuit,
• restoring the 1/4" female connection standard when replacing accessory parts,
• eliminating leaks at the gun-hose/adapter joint,
• upgrading accessory configuration where a 1/4" female thread is required.

SYMPTOMS - WHEN IT’S WORTH REPLACING

Consider replacing the part when you notice:

• leakage at the threaded joint despite correct tightening,
• damaged/worn 1/4" thread (stripping, “skipping”),
• cracking or deformation after overload,
• misalignment and difficulty tightening “straight,”
• recurring issues after disassembly when the contact surfaces show wear.

HOW TO CHOOSE THE RIGHT PART

Selection should be unambiguous:

• confirm the thread type: 1/4" female (internal),
• verify the manufacturer number: MPN 132771,
• compare with the removed part: length, shape, how it seats in the gun, and the sealing surface type,
• check what will be threaded in on the other side (thread standard and thread length).

For threaded connections, matching the thread standard and keeping axial alignment is critical-cross-threading quickly destroys threads.

COMPATIBILITY

Select the part based on MPN 132771 and compatibility with the trigger-gun connection that requires a 1/4" female thread. Because multiple 1/4" end variants exist in accessories, safest confirmation is comparison with the removed component.

[faq]

Does 1/4" GW mean an internal thread?|Yes. “GW” indicates an internal (female) thread. The mating part should have a matching 1/4" external (male) thread.

Why do 1/4" threads at the gun wear out quickly sometimes?|Most often due to angled tightening, yanking the hose, dirt on the thread, and excessive tightening torque. The gun is a “moving” component and the joint is mechanically loaded during washing.

Does a leak at the gun connection always mean the end fitting is damaged?|Not always. Often the seal, the mating surface on the hose/adapter side, or the seat is the culprit. The end fitting is suspected especially when threads or contact surfaces are worn.

How can I avoid damaging the new end fitting during installation?|Clean the threads, start straight, and don’t force the first turns. If you feel resistance at the beginning, stop and check fitment and the mating thread condition.

What should I check after replacing the connection end?|Leak tightness under pressure, no “sweating” at the thread, and that the hose isn’t pulling at a sharp angle near the gun (which loads the connection and shortens its life).

[/faq]
