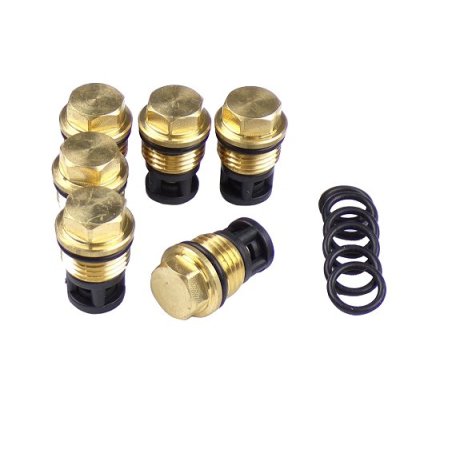

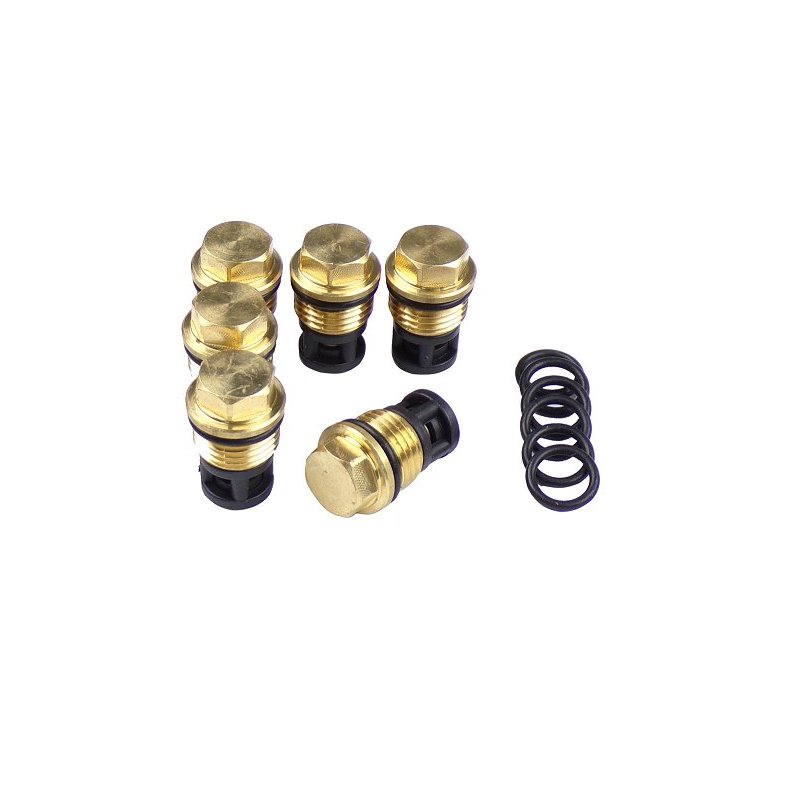

Repair Kit - Kränzle Pump Valves

The Kränzle pump valve kit for the 1050 series is a set of service parts intended for refurbishing the valve section of a high-pressure pump. Replacing valves is a standard procedure when the system cannot maintain working pressure, runs unevenly, or loses performance.

MPN / reference: 43.096 1
Weight: 0.015 kg
Dimensions / size: 18×10×1

APPLICATION

Used in servicing Kränzle pressure washers and pumps, including:

• replacing valves in the pump suction and discharge sections,
• refurbishing the valve section during pump overhaul,
• resolving pressure drops and unstable operation caused by leaking valves,
• repairs after operating with contaminated water (deposits and particles reduce sealing on valve seats).

SYMPTOMS - WHEN IT’S WORTH REPLACING

Typical symptoms of worn pump valves:

• drop in working pressure and reduced washer performance,
• jet pulsation and pressure fluctuations during operation,
• difficulty maintaining stable parameters under load,
• unstable pump behavior after releasing the trigger (pressure rollback/“floating”),
• signs of leakage in the pump section after ruling out accessories (nozzle, water filter, gun).

HOW TO CHOOSE THE RIGHT PART

Valve selection must match the pump design and valve seats - kits can differ in size and valve type:

• by manufacturer MPN / reference: 43.096 1,
• by application: Kränzle 1050 series,
• by comparison with removed parts: check valve type, seating method, and dimensions.

Accurate fit is critical for valve-section tightness - even small differences can cause continued pressure drop or pulsation.

COMPATIBILITY

Kit described as intended for Kränzle 1050 series pumps.
For safe selection, confirm compatibility by MPN 43.096 1 and the pump documentation/parts list (table/specification). Selecting only by series name without reference verification is not recommended.

[faq]

Will replacing valves fix pressure drop in the 1050 series?|Often yes, if valves are leaking or worn. Similar symptoms can also be caused by the nozzle, water filter, air ingress, or an unloader/regulating valve - it’s worth ruling these out before opening the pump.
How do I confirm kit 43.096 1 fits my pump?|The safest method is verifying MPN 43.096 1 in the 1050-series pump parts list and comparing removed valves with the new ones (type, dimensions, seating method).
Can I use aftermarket valves instead of the Kränzle kit?|Only if type, dimensions, and intended use match exactly. Valves must seal properly on their seats; an incorrect match leads to pulsation and reduced output, so use the MPN and pump technical data as your reference point.

[/faq]
