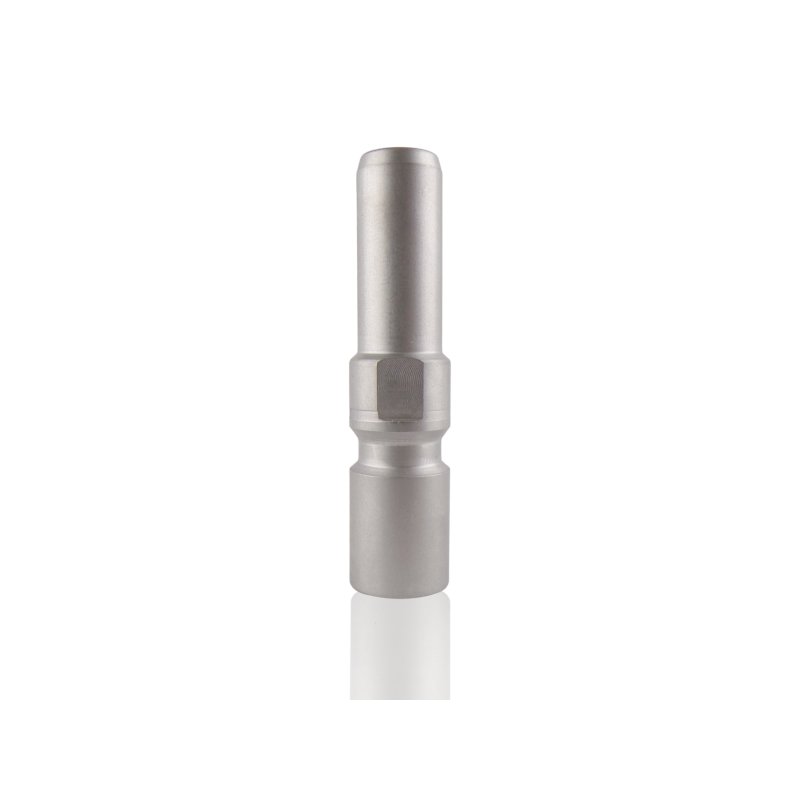

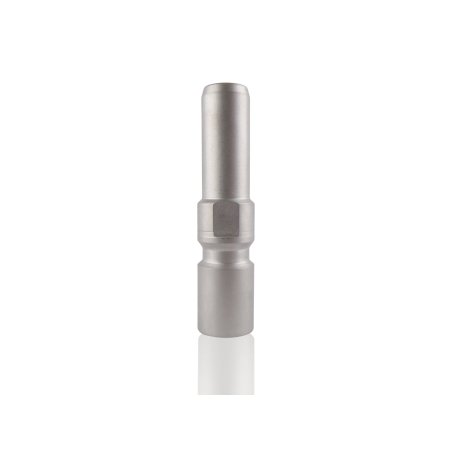

Quick coupling plug D12 - 12x1 Female

The D12 - 12×1 female quick coupling plug is a D12-system component designed to be inserted into a quick-coupling socket when the mounting side requires a 12×1 female thread. This version is used in accessories where the D12 standard is meant to provide quick swapping, while the 12×1 thread serves as the connection side to an adapter, fitting, or another system component.

MPN / reference: 13477
Type: D12 quick coupling plug
Thread: 12×1 female (internal)

APPLICATION

The D12 plug with 12×1 female thread is used, among others, for:

• creating a D12 ↔ 12×1 transition in accessory setups,
• repairing a connection end when the previous plug is worn or leaking,
• building service configurations where the mounting side uses a 12×1 male thread,
• upgrading accessories for quick swapping of working elements in the D12 standard.

SYMPTOMS - WHEN IT’S WORTH REPLACING

Consider replacing the plug when you notice:

• leakage at the D12 connection despite correct locking in the socket,
• play in the quick coupling or movement of the plug under load,
• scratches / pitting on the working part of the plug (a sign of operation in dirty conditions),
• damaged 12×1 female thread (difficulty screwing in a 12×1 male part),
• difficulty inserting it or lack of repeatable latch engagement.

HOW TO CHOOSE THE RIGHT PART

Selection is best made based on the coupling side and the thread type:

• confirm that a D12 plug is required, not a socket,
• confirm the thread on the mounting side: 12×1 female (internal thread),
• verify the part number: MPN 13477,
• compare with the removed part: D12 profile, length, and seating / sealing method,
• check the mating component: it must be a D12 socket, and on the threaded side a 12×1 male part.

The 12×1 thread is sometimes confused with other fittings of similar diameter - that is why it is best to rely on the part number and comparison with the removed component.

COMPATIBILITY

The plug should be selected by MPN 13477 and compatibility of the D12 system and the 12×1 female thread with the specific accessory. If reducers are used in the system, it is better to keep their number to a minimum - in quick couplings, every additional joint increases the risk of leakage.

[faq]

What does 12×1 female mean in practice during installation?|It is an internal thread with a 12 mm diameter and a 1 mm pitch. The mating part should have a 12×1 male thread.

Is 12×1 the same as M12×1?|In practice, the designations are equivalent (M12 with a 1 mm pitch). To be safe, however, it is still best to rely on the removed part and MPN 13477, because different fitting standards can appear in accessories.

Why can a D12 plug leak only when the hose is moving?|If the coupling has play or works at an angle, the leak may only show up when the hose bends or is pulled. This is typical of worn working surfaces on the plug or socket.

Is replacing the plug enough if the D12 socket is already worn?|Not always. The socket and plug work as a pair. With a heavily worn socket, a new plug may not provide lasting tightness.

What is the simplest way to extend the life of a D12 quick coupling?|Keep the coupling clean, do not connect or disconnect it at an angle, and do not disconnect it while the hose is under tension. Dirt and misalignment are the main causes of D12 wear in workshop practice.

[/faq]
