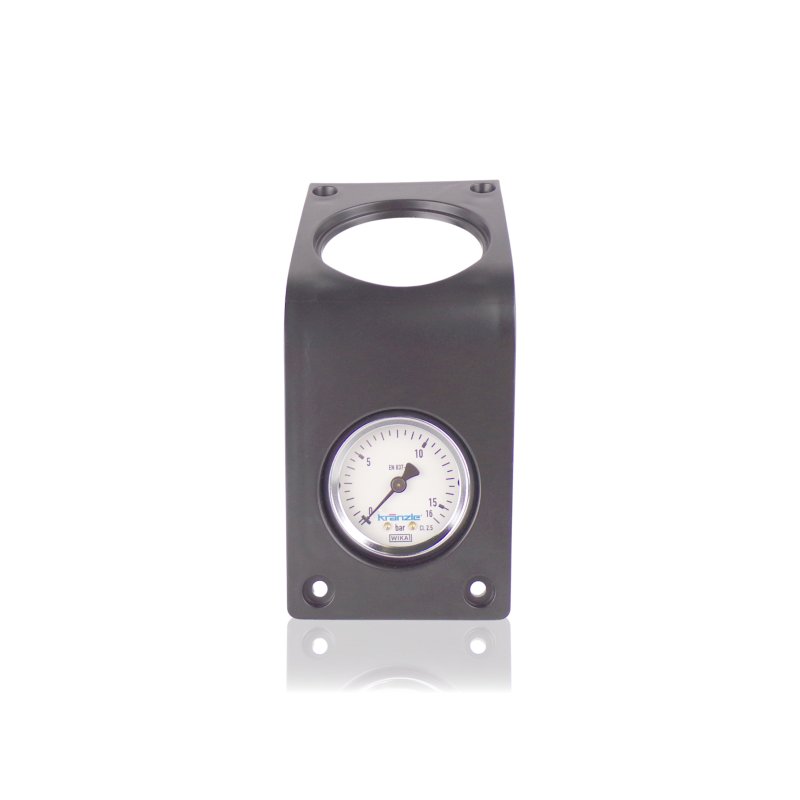

Fuel Pressure Gauge Therm 16 bar 50 mm

In the fuel system, not every fault immediately shows up as a burner failure. Often the first sign of a problem is an incorrect reading or the inability to monitor operating parameters properly. The 16 bar fuel pressure gauge in the 50 mm version is intended specifically for observing this part of the system and allows you to assess whether the fuel supply is operating within the intended range.

APPLICATION

This type of gauge is used in Therm units at points where fuel pressure in the supply system must be monitored. It is a part that matters not only for everyday readings, but also for service diagnostics, because it allows the condition of the fuel system to be assessed without dismantling the entire assembly.

In service practice, the gauge is replaced when the readings become unstable, the indication becomes unreadable, or mechanical damage to the housing or dial makes proper parameter evaluation difficult. In Therm hot water units, correct fuel pressure readings are important when checking combustion system operation, performing adjustments, and diagnosing problems related to fuel delivery to the burner.

SYMPTOMS - WHEN IT IS WORTH REPLACING

• the pointer does not indicate values correctly or works unstably
• the gauge lens is damaged, clouded, or makes reading difficult
• the gauge housing is cracked or deformed
• the reading does not return to the starting point after pressure drops
• the part has become leaky or damaged at the connection point

HOW TO CHOOSE THE CORRECT COMPONENT

In the case of a gauge, the measuring parameters and the mechanical design are key. Here, the 16 bar range and the 50 mm dial diameter must be confirmed. The connection type, mounting method, and compatibility with the installation point in the Therm unit are equally important.

Before installation, it is worth checking:

• measuring range 16 bar
• diameter 50 mm
• type and position of the connection
• mounting method in the panel or system
• compatibility with the removed part

For measuring instruments, similar appearance is not enough. If the range, diameter, or connection design do not match, the reading may be impractical, and installation itself may become difficult or impossible.

COMPATIBILITY

This gauge should be selected for the fuel system of Therm units based on its operating parameters and connection design. Compatibility is determined not only by the 16 bar range and 50 mm diameter, but also by the mounting method at the specific installation point. In measuring components, similar external appearance does not guarantee correct fit, because differences may concern the thread, connection orientation, or the working range itself.

[faq]

Does the fuel pressure gauge serve only for reading, or also for diagnostics?|It serves both functions. It allows ongoing observation of system operating parameters and, during servicing, helps assess whether the fuel supply is working correctly.

What does the 16 bar value mean on this gauge?|It is the maximum measuring range intended for this part. This parameter must match the requirements of the specific system so that the reading is useful and reliable.

Why does the 50 mm diameter matter when choosing it?|It affects both the mounting method and the readability of the readings. A gauge that is too large or too small may not fit the mounting location or may make reading difficult inside the unit housing.

How can you tell that the problem is with the gauge itself and not the fuel system?|Most often by a damaged lens, cracked housing, stuck pointer, or a reading that behaves unnaturally regardless of the actual operation of the unit.

What is worth comparing before ordering a new gauge?|It is best to check the operating range, dial diameter, connection type, mounting method, and the position of the component in the unit so that the new part matches the old version exactly.

[/faq]
