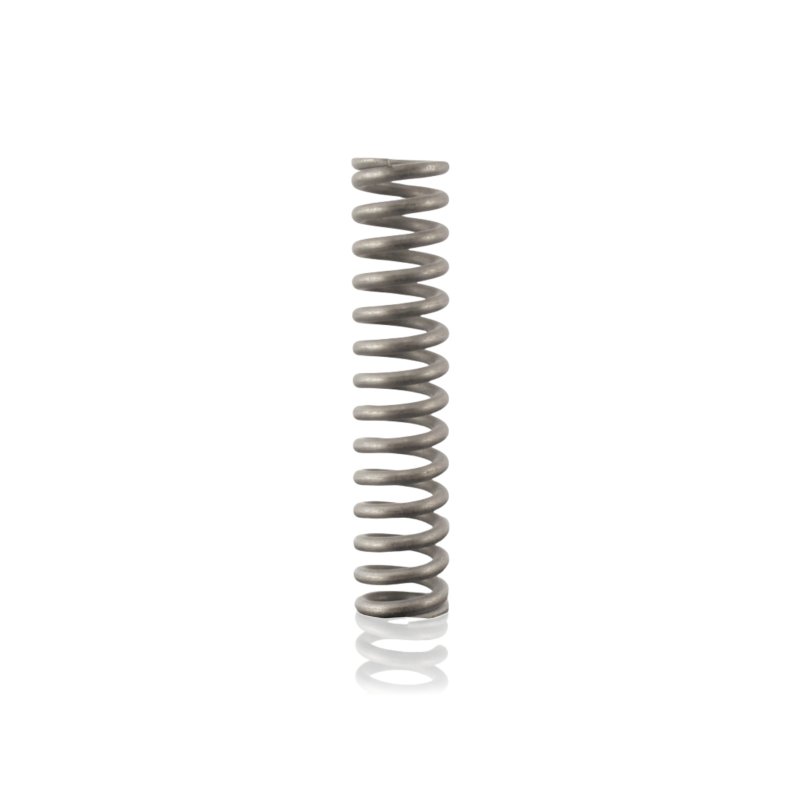

Engine Governor Spring 2.0x9.5x70mm

Spring 42587 with dimensions 2.0×9.5×70mm is a component of the engine governor mechanism of the Kranzle petrol pressure washer. Dimensions: 2.0mm is the wire diameter, 9.5mm is the external coil diameter, 70mm is the free length unloaded. The spring determines the force counteracting the centrifugal mechanism of the governor – its characteristic directly affects the set working speed of the engine and the speed of governor response to changes in pump load. The component is part of governor repair kit 42580.

Application

The spring is mounted in the petrol engine governor mechanism, where it counteracts the centrifugal force generated by the rotating governor masses. As speed increases, the centrifugal force grows and pushes the governor weights outward – the spring resists this movement and maintains balance at the nominal working speed. A spring that is too weak lowers the working speed; one that is too strong raises it – the spring characteristic must precisely match the designed speed of the specific engine.

Replaced during governor service, when the spring material is fatigued, or when the spring is mechanically damaged during disassembly.

Symptoms – when to replace

• Working speed has permanently decreased despite a correctly positioned adjusting screw – a fatigued spring with reduced free length no longer provides the nominal force at working compression.
• Engine runs at too high a speed under no load – a broken or weakened spring does not provide sufficient resistance to the centrifugal mechanism.
• Speed oscillation under constant pump load – a materially fatigued spring responds unevenly to changes in centrifugal force.
• Visible cracking, deformation or corrosion of the spring on governor disassembly.
• Free length shorter than 70mm when measuring the removed spring – material fatigue without visible cracking.

How to select the right part

Selection must be based on all three dimensions simultaneously: wire 2.0mm, external diameter 9.5mm, free length 70mm. A governor spring with the same external diameter but a different wire diameter or free length has a different force at working compression – which results in different engine working speed. Do not substitute a spring with approximate dimensions without confirming the force characteristic.

During disassembly, measure the free length of the removed spring with a calliper and compare with the nominal value of 70mm. A reduction of 2mm or more indicates material fatigue. Identify by reference number 42587 – for governor springs the spring rate is as important as the geometric dimensions.

Compatibility

Spring for the engine governor mechanism of Kranzle petrol pressure washers. Dimensions 2.0×9.5×70mm. Component of governor repair kit 42580. Verify the exact compatibility range by reference number 42587 and dimensions 2.0×9.5×70mm.

[faq]

How does governor spring 42587 differ from pump piston springs (40453, 40506, 41033) – is the selection principle similar?|The selection principle using all three dimensions is identical – wire, external diameter and free length must match. They differ in application and requirements: pump piston springs (wire 3.4–4.7mm, diameter 36mm) operate at high cyclic forces and engine speed frequency. Governor spring 42587 (wire 2.0mm, diameter 9.5mm) operates at considerably lower lever forces, but its characteristic determines the operating parameters of the petrol engine. A wrong governor spring changes engine speed; a wrong piston spring changes pump characteristics.

How to check governor spring fatigue without interrupting engine operation?|With the engine running, there is no straightforward method to check spring fatigue without disassembly. An indirect signal is a permanent change in working speed with all other governor components unchanged – if speed has decreased and cannot be corrected by adjusting screw 42584 across its full range of movement, the spring may be fatigued. Direct diagnosis: remove the spring and measure its free length – a value below 70mm confirms material fatigue.

How to distinguish symptoms of a worn governor spring from a worn adjusting screw (42584) – the symptoms can be similar?|A worn adjusting screw 42584 presents as spontaneous setting change – working speed changes gradually or jumps, particularly after extended operation under engine vibration. A fatigued spring 42587 produces a permanent, constant change in working speed without jumps – speed is stable but at a different level than nominal. For diagnosis: if speed stabilises at an incorrect level despite the adjusting screw being in the correct position – check the spring. If speed jumps or changes with the rest of the governor unchanged – check the adjusting screw.

[/faq]
