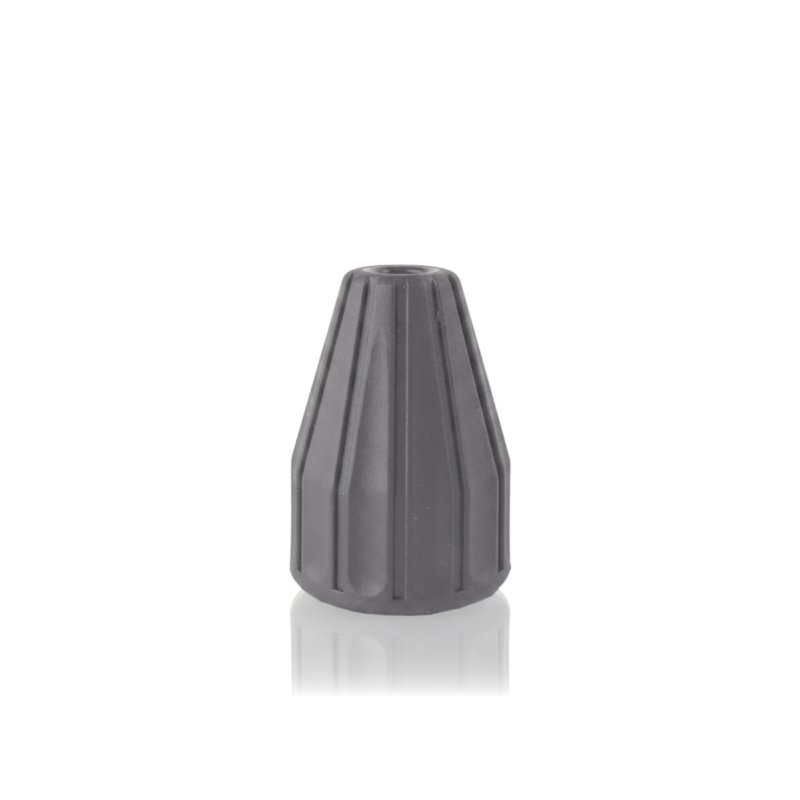

Dirtkiller Nozzle Guard

Guard 415281 is a plastic protective component for the body of the Kranzle pressure washer Dirtkiller (Schmutzkiller) rotary nozzle. It covers the outer part of the nozzle body, protecting it from mechanical damage when working close to cleaned surfaces. The plastic material of the guard distinguishes it from the rubber guard of the Turbokiller nozzle (41528) – the material provides greater rigidity and abrasion resistance, at the cost of less impact absorption compared to rubber.

Application

The guard is fitted on the outer body of the Dirtkiller nozzle as a protective element that stays in place throughout the life of the nozzle. When working close to surfaces – cleaning grouting, edges, corners or structural components – the guard makes contact with the substrate instead of directly exposing the nozzle body to damage. Dirtkiller nozzles operate at high pressure and intensive cleaning loads, where the risk of the nozzle contacting a hard substrate is higher than with standard flat fan nozzles.

Replaced when the guard cracks, shatters or deforms in a way that prevents it from seating securely on the Dirtkiller nozzle body.

Symptoms – when to replace

• Visible cracking or crumbling of the plastic – particularly at the guard edges, where the material is thinnest and most exposed to impacts.
• Guard does not sit securely on the nozzle body – noticeable play, rotation or sliding off during use indicates damage to the retention features or deformation of the sleeve.
• Deformation of the guard after contact with a hot surface or when working with hot water – the material may suffer permanent deformation at high temperatures.
• Guard missing entirely – Dirtkiller nozzle in use without protection, with the body exposed to direct contact with hard surfaces.

How to select the right part

Identify by reference number 415281. Plastic guard 415281 is intended exclusively for the Kranzle Dirtkiller nozzle – it is not a substitute for the Turbokiller rubber guard (41528) or the VarioJet nozzle guard (411551). Each Kranzle nozzle type has a guard matched to its own dimensions and body geometry.

Before ordering, check the condition of the Dirtkiller nozzle body under the guard – if the guard was damaged by a drop or impact, also assess the body and the internal spray plug before fitting the new guard.

Compatibility

Plastic guard for the Dirtkiller (Schmutzkiller) rotary nozzle of Kranzle pressure washers. Not a substitute for the Turbokiller rubber guard (41528) or the VarioJet guard (411551). Verify the exact compatibility range by reference number 415281.

[faq]

How does the Dirtkiller plastic guard (415281) differ from the Turbokiller rubber guard (41528), and when is each the correct choice?|Rubber guard 41528 absorbs impacts and protects delicate surfaces from scratching – rubber deforms on contact and returns to shape. Plastic guard 415281 is more rigid, more abrasion-resistant and maintains its shape under repeated contact with hard substrates. Selection follows the design of each specific nozzle – Turbokiller has a rubber guard, Dirtkiller a plastic one – they cannot be used interchangeably.
