Tube Connecting Pump to Reel

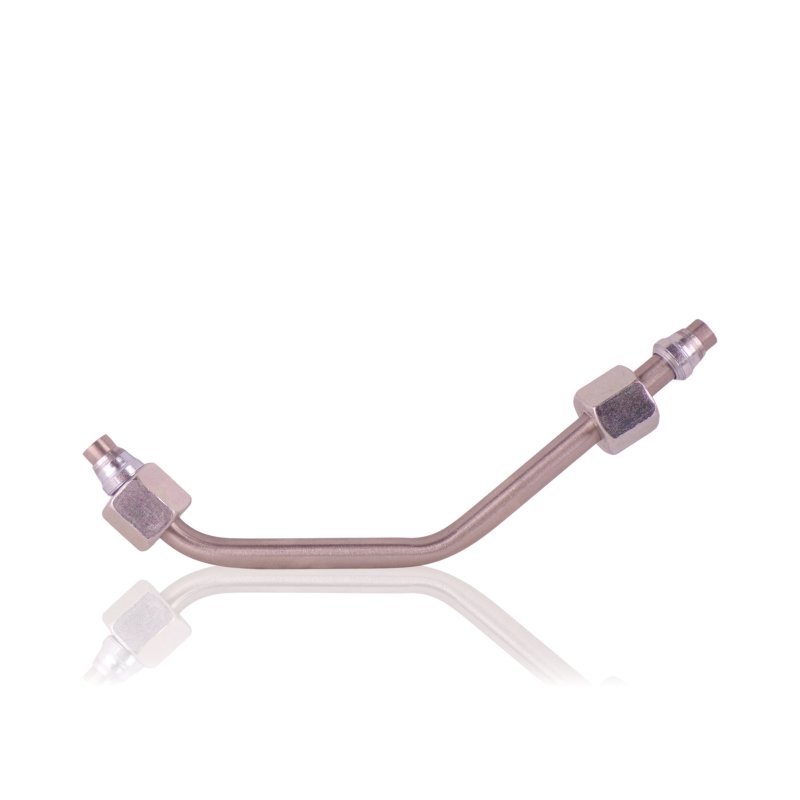

Metal tube with Ermeto fittings, carrying pressurized water from the pump/valve block to the hose reel.

Application

The tube carries high-pressure water from the pump's valve block to the water guide shaft (Welle Wasserführung) in the axis of the hose reel. Thanks to its Ermeto fittings, it provides a tight, detachable connection allowing removal during reel servicing.

Symptoms – when to replace

• Water leak at an Ermeto fitting, despite a properly tightened fitting nut.
• Visible crack, dent, or corrosion on the tube body.
• Pressure drop when working from the reel, despite a sound pump and sound high-pressure hose.
• Streak marks on the housing around the path of the tube between the pump and the reel.

How to choose the right part

Selection is based on reference number 43824 – the tube is specific to the Profi series hose reel and is not interchangeable with equivalents used in other series (e.g. quadro), despite the outwardly similar reel design.

When replacing the tube, also check the condition of the water guide shaft (43.816) and the Ermeto seals at both ends – a leak in this path often involves several components at once, not just the tube itself.

[faq]

Does this tube fit the reel on quadro pressure washers, since the reel housing looks similar?|No – despite the similar outward reel design, the tube connecting the pump to the reel has a different catalog number in the quadro series than in the Profi series and is not interchangeable between them.

I replaced the water guide shaft (43816) but the leak persists – could this tube be the cause?|Yes, that's possible – both components work in the same flow path. It's worth checking the tightness of the Ermeto connections at both ends of the tube regardless of the shaft's condition.

How can I tell a leak from this tube apart from a leak at the water shaft in the reel axis?|Dry the area around both components and run the machine under pressure – a leak at the Ermeto fitting points to the tube, while a leak from around the reel's rotating axis points to the water shaft or its seals.
