Piston Spring 4x35.5x65mm

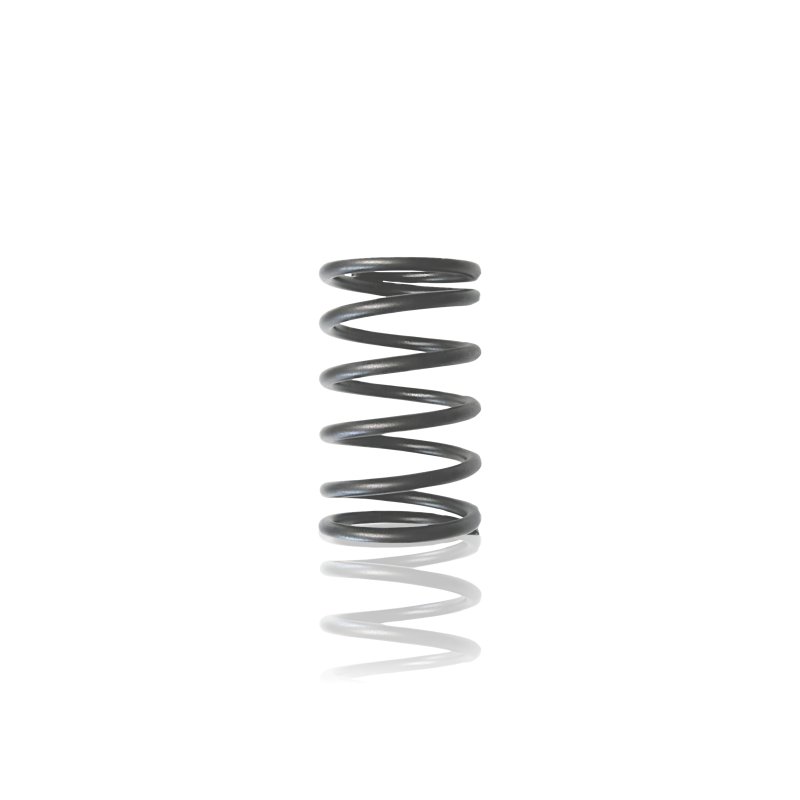

Spring 40453 with dimensions 4x35x65mm operates in the piston assembly of the Kranzle pressure washer pump. The function of the spring is to return the piston to its starting position after each working stroke – without this return movement the pump cannot draw in water correctly or maintain a regular operating cycle. Dimensions in standard format: 4mm is the wire diameter, 35mm is the external coil diameter, 65mm is the free length (unloaded).

Application

The spring is mounted in the piston cylinder of the pump – directly at the piston or in the bearing seat of the piston guide, depending on the head design. It operates continuously with each rotation of the crankshaft or drive cam. When spring rate is correct, piston movement is symmetrical and rhythmic. A worn or broken spring disrupts this rhythm – initially slightly, and increasingly noticeably over time.

Service part replaced during pump overhaul – when dismantling the head, replacing piston seals, or after identifying pressure irregularities not related to valves or seals.

Symptoms – when to replace

• Irregular working pressure – pulsation or noticeable pressure spikes at constant engine speed that did not occur previously.
• Drop in maximum pressure without an obvious cause on the valve, seal or nozzle side.
• A distinct rhythmic knocking from the pump head area during operation – particularly on cold start.
• Visible deformation or broken coils during inspection – reduction in free length relative to the nominal value of 65mm, or uneven coil pitch.
• Material fatigue after a long period of service – no visible external damage, but the spring does not return to its free length after decompression.

How to select the right part

Selection must be based on all three dimensions simultaneously: wire diameter 4mm, external diameter 35mm, free length 65mm. Changing any single dimension means a different spring with different spring characteristics – even a visually similar spring with a different wire diameter has a different force characteristic.

During disassembly, measure the free length of the removed spring – if it is shorter than 65mm, the spring is fatigued. Also measure the external diameter and wire with a calliper before ordering – an error of 1mm in wire diameter for pump springs results in a noticeable difference in piston contact force.

In piston pumps with multiple cylinders, springs operate under similar conditions. If one shows wear, the others are usually in a similar state – it is worth replacing the full set during a single disassembly.

Identification by reference number 40453 should be treated as confirmation of selection – not the only basis. If there is any doubt about the pump model, verify dimensions on the removed part.

Compatibility

Service part for piston pumps of Kranzle pressure washers. Verify the exact compatibility range by reference number 40453 and dimensions 4x35x65mm – compare with the removed spring before ordering.

[faq]

How do I know the spring is causing the problem and not the valves or piston seals?|A damaged spring produces symptoms that are rhythmic and proportional to engine speed – pressure pulsation that increases with engine revs. Damaged valves cause a constant, unchanging pressure drop or loss of pressure. Leaking piston seals present as oil or water leaking from the head. If pressure pulsates rhythmically but valves and seals are found to be intact on disassembly – the spring is the right place to look.

Is the "free length" dimension of the spring the installed length or the length measured outside the pump?|Free length is the dimension of the spring with no load applied – measured after removal from the pump, when the spring is lying loose. When installed, the spring is always compressed to its working length. When ordering a replacement, you specify the free length – 65mm in the case of 40453. Do not measure the spring in the installed position, as you will obtain the working length, not the free length.

Does the piston spring always need to be replaced together with the piston seals?|There is no such requirement, but if the pump is already disassembled to piston level, replacing the piston seals at the same time is justified – particularly if the machine has several seasons of use behind it. The spring itself does not cause seal wear, but dismantling the head only to repeat the process a few months later for the seals is impractical.

How do I measure whether a spring is fatigued if it is not broken?|Measure the free length of the removed spring and compare it with the nominal value of 65mm. A reduction of 2–3mm or more indicates material fatigue – the spring no longer generates the nominal contact force. Also check the uniformity of coil pitch – with material fatigue the coils are sometimes unevenly distributed. A broken spring is obvious; a fatigued spring without a break requires measurement.
