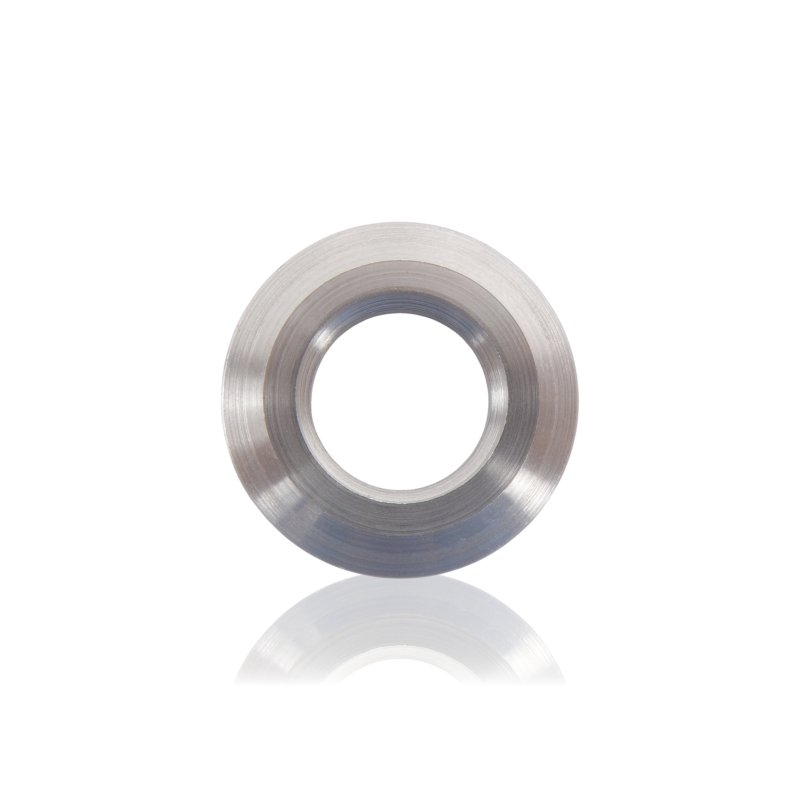

Piston Spring Seat Washer 15mm

Metal plate positioned between the piston spring and the 15mm plunger in the pump drive mechanism. Transfers the spring's pressure force evenly onto the plunger.

Application

The plate works in the pump drive mechanism chamber (Getriebeteil), in the sequence piston spring – pressure plate – plunger – retaining ring. It ensures stable, axial transfer of spring pressure onto the plunger during pump operation.

Symptoms – when to replace

• The plate is visibly worn or has an uneven contact surface against the spring or plunger.
• Visible dents or localized wear marks at the contact point with the spring.
• Uneven pump operation or a pressure drop, with mechanism disassembly revealing a tilted or cracked plate.
• Increased axial play of the plunger when the mechanism is moved by hand after removing the housing.

How to choose the right part

Selection is based on reference number 42909 and matching the 15mm plunger diameter – the plate is not interchangeable with versions for 14mm or 18mm plungers, despite a similar appearance.

When replacing, also check the condition of the piston spring itself (41.033) and the plunger (42.908) – a worn plate is often accompanied by wear on these neighboring parts.

Compatibility

Kränzle X A15 TST, X A17 TST, X 8/150 TST, X 10/140 TST, K 2195 TS/TST – pump drive mechanism with 15mm plunger.

[faq]

How can I confirm my machine has a 15mm plunger before ordering the plate?|The most reliable way is to compare the removed plate or plunger directly with the part being ordered – model designations X A15/A17 TST are sometimes described differently in documentation, so the catalog number is a more reliable reference than the model name alone.

Does replacing the plate require dismantling the whole pump, or is removing the drive mechanism housing enough?|Access to the plate requires removing the drive mechanism housing (Gehäuseplatte) and taking out the spring-plunger assembly – it cannot be replaced without this disassembly.

Can a worn pressure plate damage the plunger itself?|Yes – uneven spring pressure from a worn or tilted plate causes asymmetric loading on the plunger, which accelerates wear on its surface and on the seals in the valve block.

Does the 15mm plate differ in any way between X A15/A17 TST and K 2195 TS/TST, despite sharing the same number?|No – the same catalog number 42909 denotes an identical physical part, used in both model families in the same role within the drive mechanism.

[/faq]
