Right Drum Bracket Clip

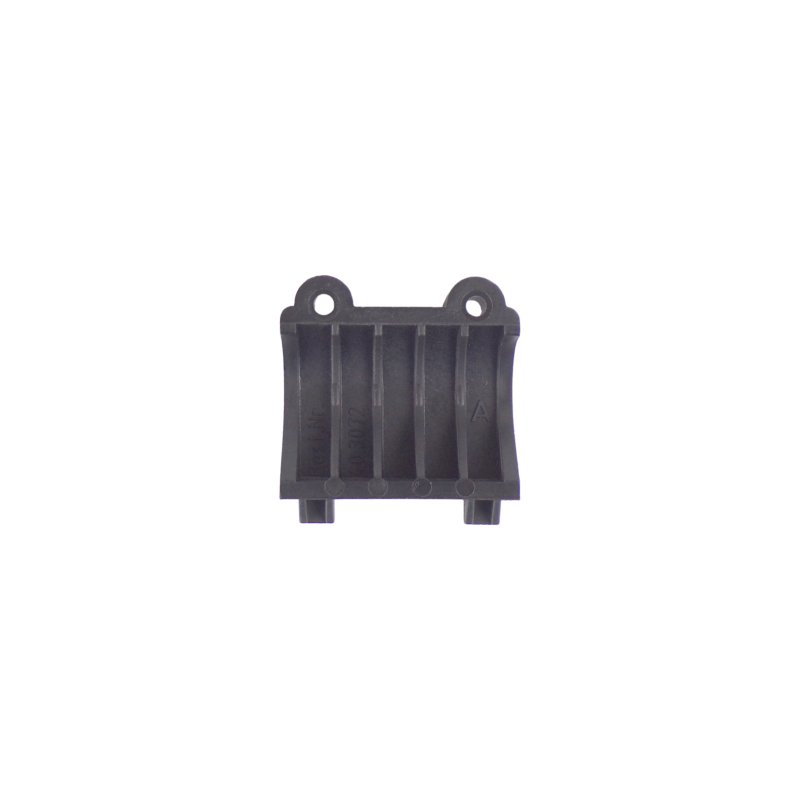

The hose reel drum handle is held in place by two clips – left and right. Clip 403072 is the plastic component on the right side: it fastens the drum handle, enabling stable carrying and transport of the washer with the drum.

Application

The clip is installed on the right side of the Kranzle large hose reel drum handle. It connects the drum to the washer frame and holds it in position. The plastic clip body functions as a clamping element.

Symptoms – When to Replace

• Cracked or broken-off clip – the handle is not securely seated on the right side of the drum.
• Handle play on the right side with the left clip intact – the clip does not snap securely or does not close fully.
• Brittle or cracked plastic at the mounting points – the clip holds but risks breaking off at the next use.
• Damaged latches – the component does not lock the handle and slides out on its own.

How to Select the Correct Part

Reference number 403072 identifies exclusively the right-side variant. Before ordering, confirm which clip is damaged. When replacing, compare the new clip with the removed one in terms of latch shape.

Compatibility

Part used among others in large hose reel drums of Kranzle pressure washers – right-side drum handle variant. The left drum handle clip has a separate reference number. Verify compatibility with a specific drum model using reference number 403072 or the drum service diagram.
