Piston Spring Pressure Disc 18mm

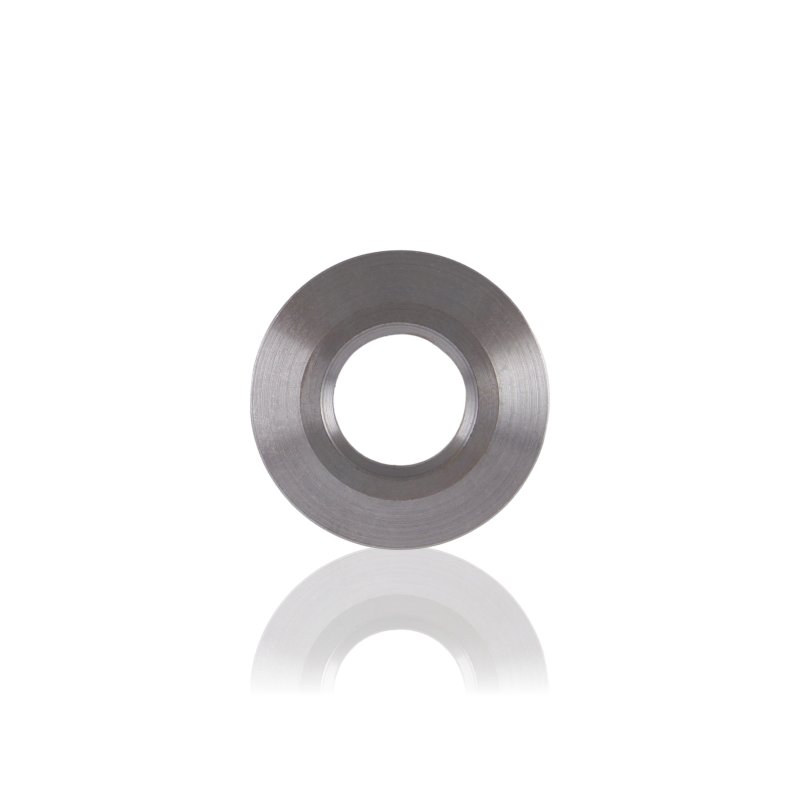

Pressure disc 40454 with a diameter of 18mm is a thrust element of the piston spring assembly in the Kranzle pressure washer pump. It sits between the piston spring and the piston surface or its guide, and distributes spring load evenly across that area. Without the disc, the spring would bear against a smaller surface – the central coil could dig into the piston material or deform its face during prolonged operation.

Application

The disc is mounted in the piston cylinder of the pump. Its function is purely mechanical: it increases the contact area between the spring and the piston or thrust seat, and prevents stress concentration at a single point. It operates continuously together with the spring during each piston stroke.

Service part replaced during pump head overhaul – when dismantling the piston assembly, replacing seals or spring 40453. With the head open, it is worth checking its condition even if replacement was not planned.

Symptoms – when to replace

• Visible indentation, wear or deformation on the disc face – a mark from a spring coil indicating pressure concentration.
• Cracking or chipping of the disc edge – particularly with a steel disc, where corrosion can initiate a crack.
• The disc sits at an angle in the seat or is noticeably loose – resulting in uneven spring load and asymmetric piston movement.
• Seizure or corrosion blocking free seating of the disc in the guide – the disc does not lie flat, and the spring operates at an angle.

How to select the right part

The primary selection parameter is the 18mm diameter. Before ordering, measure the removed disc with a calliper – the diameter of the thrust seat and piston determines the permissible range. A disc that is too small does not cover a sufficient surface area; one that is too large will not fit in the cylinder or will obstruct piston movement.

Also check the disc thickness – if too thick, it alters the working length of the spring and may disrupt the piston stroke. When replacing, measure both values on the removed part.

Identify by reference number 40454 and the 18mm dimension. If there is any doubt about the pump model – verify against the removed part.

Compatibility

Service part for piston pumps of Kranzle pressure washers. Verify the exact compatibility range by reference number 40454 and the 18mm diameter.

[faq]

How does a pressure disc differ from a standard washer, and can it be replaced with a washer of the same dimension?|A pressure disc has a precisely defined thickness and flatness – its purpose is not just to fill a space, but to transfer spring force evenly across a defined surface. A standard washer may have a different thickness, hardness or surface roughness, which alters the operating conditions of the spring. In a cyclically operating piston assembly these differences matter – use the original 40454 unless you have confirmed technical data for an alternative.

Can the disc be omitted during assembly if the spring fits in the cylinder anyway?|The spring will physically fit without the disc, but it will bear against the piston or its guide directly with the central coil. In a short time an indentation from coil pressure will appear on the piston face, and piston movement may become slightly asymmetric. With frequent pump operation this leads to accelerated wear of the piston and seals – disassembly after such damage will be more costly than purchasing the disc.

How to inspect the disc during a service check if it looks undamaged?|Place the disc on a flat piece of glass or a reference surface – if it rocks or does not lie stably, it is deformed. Check the thickness at several points with a calliper – a difference of more than 0.1–0.2mm between points indicates uneven wear. Also assess the face surface for marks from the spring coil – even without a visible indentation it may be polished in one spot, which indicates pressure concentration.
