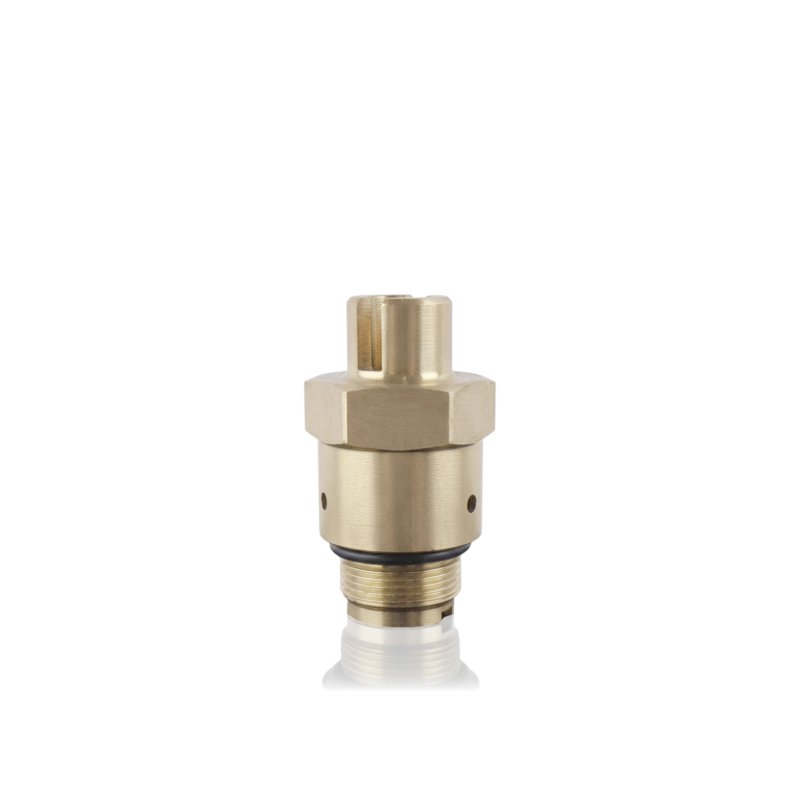

Pressure Adjustment Knob Piston Guide 8mm

Component 42105 is a guide with an 8mm bore forming the body of the pressure adjustment knob mechanism in the Kranzle pressure washer pump regulating valve. It guides the control piston (Steuerkolben 14134) along the axis of the adjustment knob, ensuring its linear movement with each knob rotation that changes the valve spring tension. The precision of piston guidance in the guide directly determines the stability and repeatability of the set working pressure – play in the guide produces unstable adjustment despite intact seals and spring. The component is part of regulating valve set 40490 as one of its 13 components.

Application

The guide is mounted in the regulating valve body as the seat for control piston 14134, centrally under the adjustment knob (Handrad 40457). When the knob is rotated, the pre-tension of the black valve spring (14125) changes – the spring, pressed by the pressure disc (14126), moves the control piston inside the guide. The guide keeps the piston on its axis of movement and prevents lateral deflection, which would disrupt the sealing by Parbaks 16mm (13159) and 8mm (14123). The needle bearing (14146) mounted above the guide allows smooth knob rotation under spring load.

Replaced when the guide is mechanically damaged, the piston has excessive play in the 8mm bore, or pressure adjustment by knob is unstable despite intact valve seals and spring.

Symptoms – when to replace

• Unstable working pressure despite a correctly set knob – piston play in the 8mm guide causes lateral deflection and uneven sealing at each stroke.
• Pressure changes spontaneously with the knob untouched – excessive guide play allows the piston to move independently of knob position.
• Visible scoring or seizure marks on the 8mm bore surface of the guide – the piston race is uneven, generating resistance or play at different stages of the stroke.
• Water leak at the regulating valve despite new Parbaks seals – a deformed guide does not maintain the seals in the correct axial position.
• Cracking or deformation of the guide body visible during knob set disassembly.

How to select the right part

Identify by reference number 42105 and bore dimension 8mm. Guide 42105 is specific to the Kranzle pump regulating valve – the designation "spezial" indicates a geometry not available in standard hydraulic guide catalogues.

When replacing the guide alone, also assess the condition of control piston 14134 – lateral play results from wear of both components working as a pair. If the piston shows seizure or corrosion marks, replacing only the guide will not restore stable adjustment. With advanced assembly wear, complete set 40490 is a more reliable solution than sourcing individual components separately.

Compatibility

Piston guide for the pressure adjustment knob mechanism in the regulating valve of Kranzle pressure washer pumps. Guide bore: 8mm. Component of set 40490. Works with: control piston 14134, Parbaks 16mm (13159), Parbaks 8mm (14123), black valve spring 14125, spring pressure disc 14126, needle bearing 14146, knob 40457. Verify the exact compatibility range by reference number 42105.

[faq]

Why does turning the pressure adjustment knob not change pressure evenly – could this be the guide?|Yes – uneven response to knob rotation is a classic symptom of piston play in the guide. With lateral play, the piston does not move axially in proportion to knob rotation, but instead "jumps" between positions. This manifests as pressure spikes during smooth knob rotation, or a dead zone where rotation produces no effect. Check the guide and piston after removing the knob – play felt by hand when moving the piston in the 8mm guide bore confirms wear.

[/faq]
