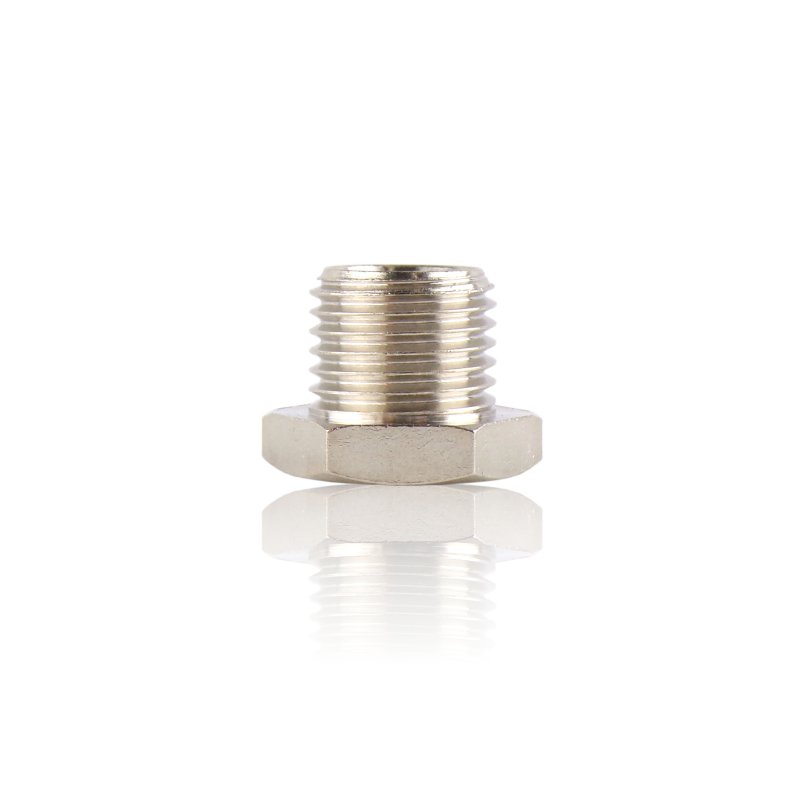

Reducer 1/8" F - 1/4" M

The 1/8" F > 1/4" M reducer is an accessory part used to join components with different thread standards: 1/8" female thread on one side and 1/4" male thread on the other. In service practice, it’s used when installing pressure gauges, sensors, fittings, or other system components where you need to change the connection size without modifying the installation.

MPN / reference: 405034

APPLICATION

The reducer is used in typical assembly and service work:

• adapting a 1/8" threaded accessory connection to a 1/4" component,
• installing a pressure gauge or measurement adapter in a circuit with a different thread size,
• connecting accessory parts in service configurations,
• repairs and retrofits where keeping existing fittings is preferred.

SYMPTOMS - WHEN IT’S WORTH REPLACING

Consider replacing the reducer when you notice:

• thread leakage despite correct installation,
• thread damage (stripping, wear, galling),
• cracking or deformation after disassembly,
• difficulty threading in properly or achieving joint alignment,
• corrosion or contamination that prevents a tight seal.

HOW TO CHOOSE THE RIGHT PART

Selection should be unambiguous:

• confirm the direction and type of threads: 1/8" female (internal) → 1/4" male (external),
• verify the manufacturer number: MPN 405034,
• compare with the removed part: length, shape, and sealing method,
• ensure it fits the installation space and allows proper alignment.

With threaded fittings, matching the standard and thread direction is critical - a mistake results in leaks or inability to assemble.

COMPATIBILITY

Select the reducer based on the 1/8" female and 1/4" male thread standards and the specific application in the system. Best practice is to confirm by comparing with the removed part and the connection requirements of the accessory where it will be used.

[faq]

What do GW and GZ mean in the reducer description?|GW means female/internal thread, and GZ means male/external thread. Here, the reducer has 1/8" GW on one side and 1/4" GZ on the other.

Is this reducer suitable for high-pressure circuits?|It can be, provided it is intended for that specific point in the system and the joint seals properly. In practice, suitability depends on the application (e.g., gauge/measurement port) and the sealing method used.

Why can a joint leak even when using the correct reducer?|Most commonly due to damaged threads, dirt/contamination, misalignment during assembly, or incorrect thread sealing. It’s worth checking both threads and the contact surfaces.

How can I avoid damaging the thread during installation?|Start the thread straight (avoid cross-threading), don’t use excessive force, and make sure the threads are clean. If you feel resistance at the start, stop and verify fitment.

Does the reducer change flow in the system?|In typical accessory applications its effect on flow is secondary. The key is achieving a tight seal and correct thread match for the connected components.

[/faq]
