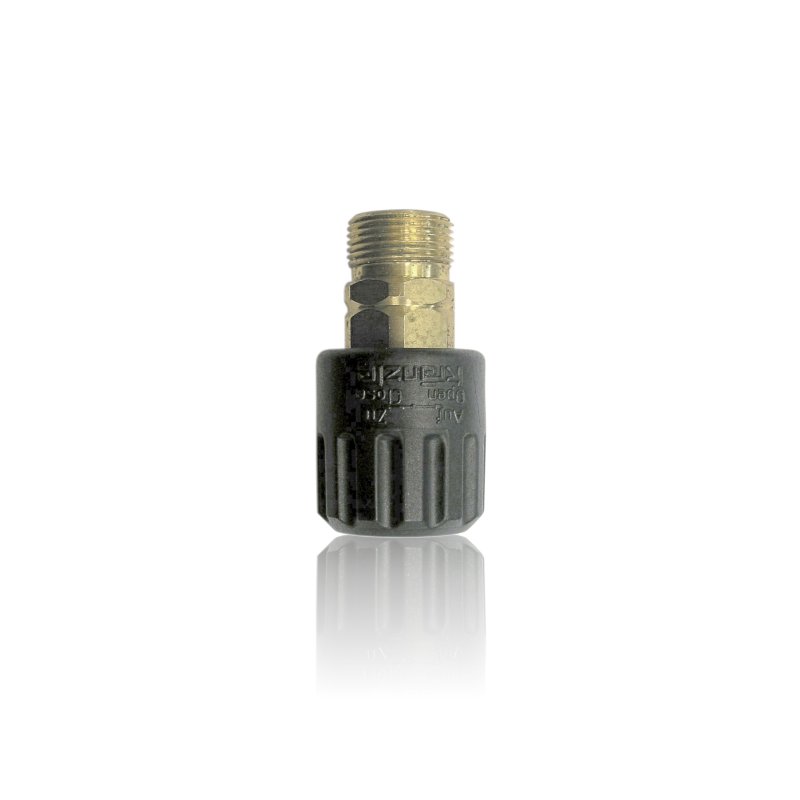

Swivel coupling M22-M22

The M22-M22 swivel coupling is a connection fitting used to join M22-standard connections on both sides. The swivel (rotating) version is used where the hose moves dynamically and tends to twist-helping relieve threaded joints and reduce transfer of twist into the hose and trigger gun.

MPN / reference: 133602
Connection standard: M22 - M22

APPLICATION

The swivel coupling is used in typical service and assembly work:

• connecting hose sections or accessories terminated with M22,
• reducing hose twisting during mobile work (workshop, service, field use),
• repairing joints when an old coupling is worn or leaking,
• upgrading an accessory set for easier handling and less thread loading.

SYMPTOMS - WHEN IT’S WORTH REPLACING

Consider replacing the coupling when you notice:

• leakage at the joint despite correct tightening,
• binding or uneven rotation of the swivel element,
• worn M22 threads that bind or “skip,”
• excessive play in the coupling that reduces tightness,
• frequent hose twisting transferring into joints and causing leaks.

HOW TO CHOOSE THE RIGHT PART

Selection should be unambiguous:

• confirm you need a swivel (rotating) coupling, not a rigid connector,
• confirm M22 connections are required on both sides,
• verify the manufacturer number: MPN 133602,
• compare with the removed part: thread type on each side (female/male), length, and sealing method.

With M22 accessories, multiple variants exist (female/male combinations), so “M22-M22” should be confirmed at both the hose and gun sides.

COMPATIBILITY

Select the coupling based on MPN 133602 and compatibility with the specific M22 connection configuration in your accessory setup. The safest confirmation is comparison with the removed part, since M22 couplings can differ by thread type and sealing geometry.

[faq]

What does a swivel coupling provide versus a standard rigid M22 connector?|It allows the hose/accessories to rotate relative to each other, so hose twist loads the threads and seals less. A rigid connector transfers twist directly into the hose and joints.

Will a swivel coupling solve a hose that keeps “wrapping up”?|It often helps, but if the hose is permanently twisted or damaged, the coupling won’t restore full flexibility. In that case, assess the hose condition itself.

How do I know whether each side is M22 female or male?|The simplest way is comparing with the removed part: a male thread screws into a female thread. In practice, different combinations exist, so direct comparison is key.

Why can a swivel coupling start leaking over time?|Usually due to wear of sealing elements in the rotating section, contamination, or wear of working surfaces. Swivel couplings move mechanically and may need replacement over time.

What should I check after installing an M22-M22 swivel coupling?|Leak tightness under pressure and that the swivel rotates smoothly without binding. Also ensure the hose isn’t forced into a sharp angle right at the coupling, which accelerates wear.

[/faq]
