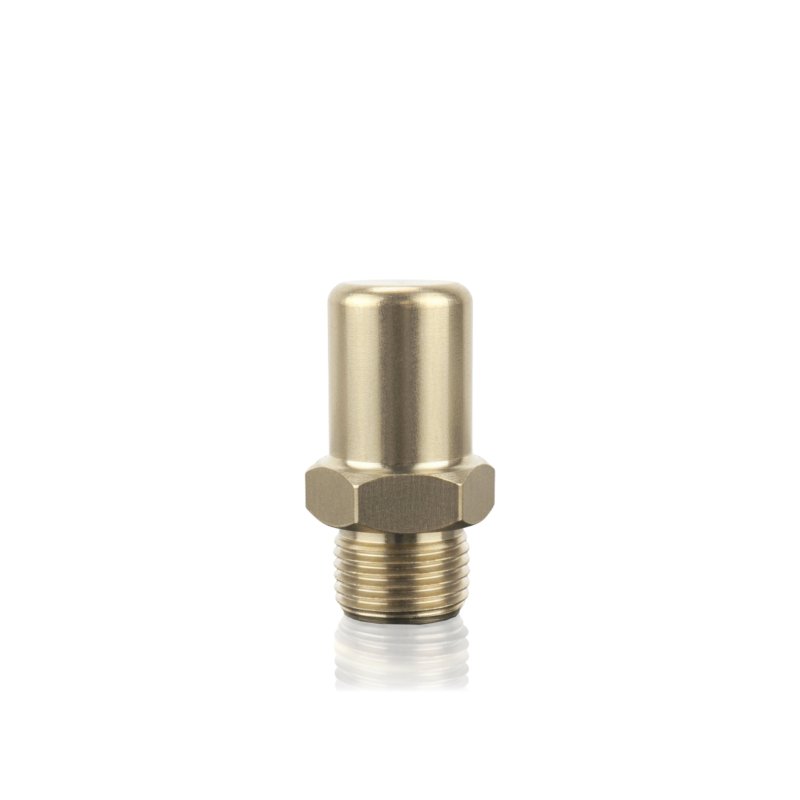

Engine Governor Adjusting Screw

Adjusting screw 42584 is a setting element of the engine governor (governor) mechanism of the Kranzle petrol pressure washer. Its position in the governor determines the pre-tension of the spring or the lever travel limit – which directly determines the set working or maximum engine speed. Changing the position of the adjusting screw changes the governor's operating point, so re-setting with a tachometer is required every time the screw is replaced or removed.

Application

The screw is mounted in the governor body at the carburettor or fuel control mechanism of the petrol engine. It compresses the governor spring or limits the range of lever movement – depending on the specific governor design in the engine model. It is the component directly responsible for the working speed setting: a screw that is too loose lowers the maximum speed; one that is tightened too much raises it above the nominal value. The correct screw position is set at the factory and must be restored after every disassembly by calibration with the engine running.

Replaced when the screw thread is damaged, the body corrodes, or the screw falls out or loosens during engine operation.

Symptoms – when to replace

• Engine speed has changed without any adjustment being made – a loose adjusting screw shifts on its own under engine vibration and changes the governor's operating point.
• Damaged screw thread – correct tightening or maintenance of the setting after adjustment is no longer possible.
• Screw has fallen out or is missing – the governor operates without a stop, which can lead to the engine running outside the nominal range.
• Visible corrosion or mechanical damage to the screw head – a secure grip with a tool during adjustment is no longer possible.

How to select the right part

Identify by reference number 42584. Governor adjusting screws have thread dimensions and lengths specific to the particular governor body – do not order a standard screw without confirming dimensional compatibility with the removed component. Before ordering, check the drive type in the screw head (flat, cross, hex socket, Torx) and measure the thread on the removed screw.

Adjusting screw 42584 is a component of governor repair kit 42580, or available separately – if kit 42580 was recently replaced and the problem concerns only this screw, purchasing the individual screw is the correct solution.

Compatibility

Adjusting screw for the engine governor of Kranzle petrol pressure washers. Component associated with governor repair kit 42580. Verify the exact compatibility range by reference number 42584 and the petrol engine model fitted in the washer.
