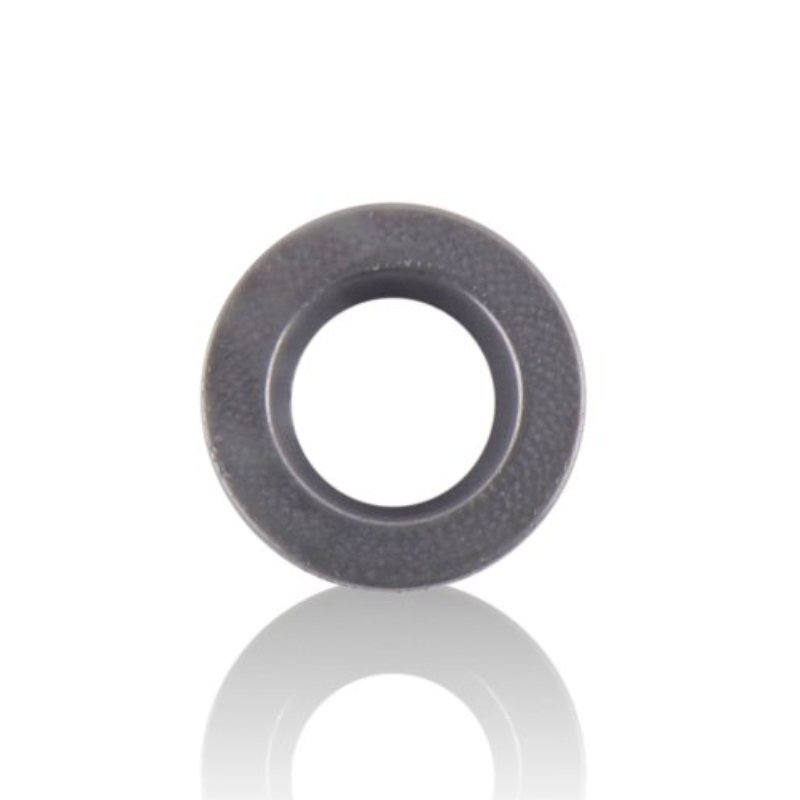

Sealing Sleeve 12mm

The hard 12 mm 12x20x5.3 seal is a sealing element used in pressure washer pump assemblies where precise fit in the gland and stable operation under high pressure are essential. In service work, it is used for pump rebuilding and repairs of the hydraulic system when a worn seal causes leaks or deterioration of operating performance.

MPN / reference: 43075
Size: 12x20x5.3
Type: hard seal

APPLICATION

The seal is used in typical service work:

• sealing the hydraulic section of the pump,
• repairing leaks in sealing seats,
• rebuilding pumps during inspection or overhaul,
• replacing worn sealing elements in systems operating under high pressure.

SYMPTOMS - WHEN REPLACEMENT IS RECOMMENDED

It is worth replacing the seal when the following appear:

• water leaks around the pump or sealing housing,
• drop in working pressure despite proper accessories,
• damage, flattening, or hardening of the sealing edge after disassembly,
• recurring leakage after previous service,
• signs of uneven seal operation in the gland.

HOW TO CHOOSE THE RIGHT PART

Selection of the seal should be precise:

• verify the 12x20x5.3 size,
• confirm the manufacturer number: MPN 43075,
• compare with the removed part: profile, height, and seating method in the gland.

In high-pressure systems, even a small dimensional difference can result in leakage or faster seal wear.

COMPATIBILITY

The seal should be selected based on MPN 43075 and the 12x20x5.3 size, according to the parts list for the specific pump or assembly. Selection should not be based solely on the general description “12 mm seal” without confirming compatibility in the service documentation.

[faq]

How does a hard seal differ from a soft seal in service practice?|The difference concerns the seal type and the way it works in the gland. When selecting, the most important thing is to use exactly the variant intended for the given assembly, because “eyeballing” a substitution may cause leaks.

Does the hard 12x20x5.3 seal need to match the 5.3 height exactly?|Yes. Height and profile affect the way the seal is loaded and how it works under pressure. Even a small difference may reduce tightness.

What most often damages hard seals in a pump?|Most often: contaminants in the water, a worn gland, a damaged cooperating surface, or incorrect installation causing cutting or deformation of the sealing edge.

When installing a new seal, do I need to check the condition of the gland?|Yes. Even a new seal will not work correctly if the gland has scratches, pitting, or contamination affecting seating and compression.

How can I tell that the seal has been chosen and installed correctly?|After startup, the system should remain tight, and the working test should show no leaks or unstable pressure. In addition, the seal should sit evenly after installation, without deformation.

[/faq]
