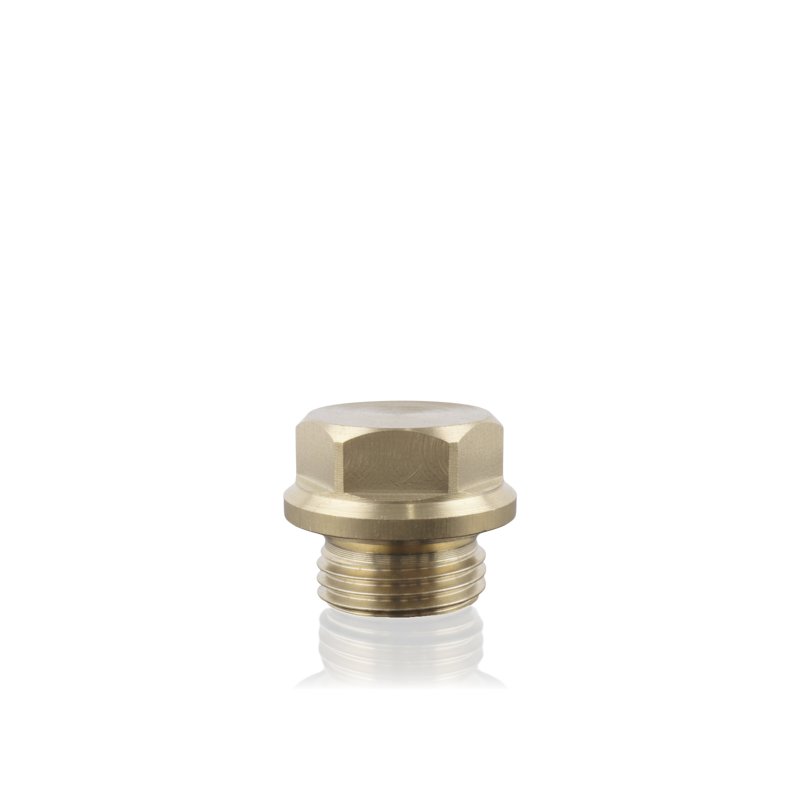

Brass Sealing Plug R1/2"

Plug 42032 is a brass component closing an R1/2" bore in the valve block or pump housing of the Kranzle pressure washer. The external taper thread R1/2" (BSPT – British Standard Pipe Taper) screws into the bore and seals through progressively tighter thread engagement when tightened – without a separate face seal. The brass body provides corrosion resistance under constant contact with working water and safe operation in contact with aluminium pump components.

Application

The plug is mounted in a bore with an internal R1/2" thread in the valve block or pump housing – closing an unused hydraulic channel, service port or connection not required in a given pump configuration. The taper nature of the R1/2" thread means the plug enters progressively tighter with each successive turn – tightening produces increasing resistance that signals progressive sealing, not the mechanical stop encountered with a parallel thread.

Replaced when the thread is damaged, the connection leaks, or the brass body is mechanically damaged.

Symptoms – when to replace

• Water leak at the R1/2" thread during pump operation – the taper thread does not seal correctly with damaged or worn flanks.
• Plug has loosened under pump vibration – insufficient tightening torque or worn taper thread flanks.
• Visible corrosion or pitting on the thread – possible despite brass in the presence of aggressive cleaning agents or water at extreme pH.
• Stripped or damaged head hex – a secure grip with a wrench is no longer possible without risk of deforming the brass head edges.

How to select the right part

Identify by reference number 42032 and thread R1/2". Taper thread R1/2" (BSPT) and parallel thread G1/2" (BSPP) have identical external diameters – they are easy to confuse but not interchangeable. Check the thread type in the pump bore: with a taper thread the plug enters progressively tighter with each successive turn; with a parallel thread the resistance is uniform throughout. A BSPT plug screwed into a BSPP bore will not seal correctly even with PTFE tape.

Brass material is an integral feature of this plug – when ordering a replacement, confirm the material. A steel plug in an aluminium pump housing under constant water contact can lead to galvanic corrosion that is difficult to distinguish from normal thread wear.

Compatibility

Brass sealing plug for R1/2" bores in the valve block or housing of Kranzle pressure washer pumps. External taper thread R1/2" (BSPT). Verify the exact compatibility range by reference number 42032.

[faq]

How does taper thread R1/2" differ from parallel G1/2", and how to tell them apart in a pump bore?|Taper thread R1/2" (BSPT) has a progressively decreasing diameter in the direction of tightening – the plug enters progressively tighter and seals through thread flank deformation when tightened. Parallel thread G1/2" (BSPP) has a constant diameter throughout and requires a face seal or O-ring, as the thread itself does not seal. In the pump bore: with a taper thread the plug runs in loosely for the first 2–3 turns, then resistance rises sharply. With a parallel thread, resistance is uniform from the start.

How to tighten a taper plug correctly – to what point and how to recognise correct tightening?

A taper thread is tightened to the resistance resulting from progressively increasing thread engagement – not to a set torque as with a parallel thread. As a guide: tighten by hand to resistance, then turn a further 1.5–2 turns with a wrench. With a brass plug in an aluminium block, do not apply excessive force – brass is softer than steel and at too high a torque the thread flanks may bite into the bore, making later removal difficult.

[/faq]
