Brake Cam (Lever) for Kränzle Wheeled Pressure Washers
search
  • Brake Cam (Lever) for Kränzle Wheeled Pressure Washers
  • Brake Cam (Lever) for Kränzle Wheeled Pressure Washers

Brake Cam

44023
3.7 x 3.3 x 1.2 cm

Authorised distributor

€18.38
Tax included €14.94 excl. VAT
Mała ilość Mała ilość
Delivery in 2-3 days
Get pricing

Need advice? Call us, we will help you choose
4.7 Our reviews on Google +48 502 210 490
Safe delivery Shipped on a pallet, wrapped in stretch film
Shipping from €3.54
Dispatch within 24h Order now and we will ship it on Monday

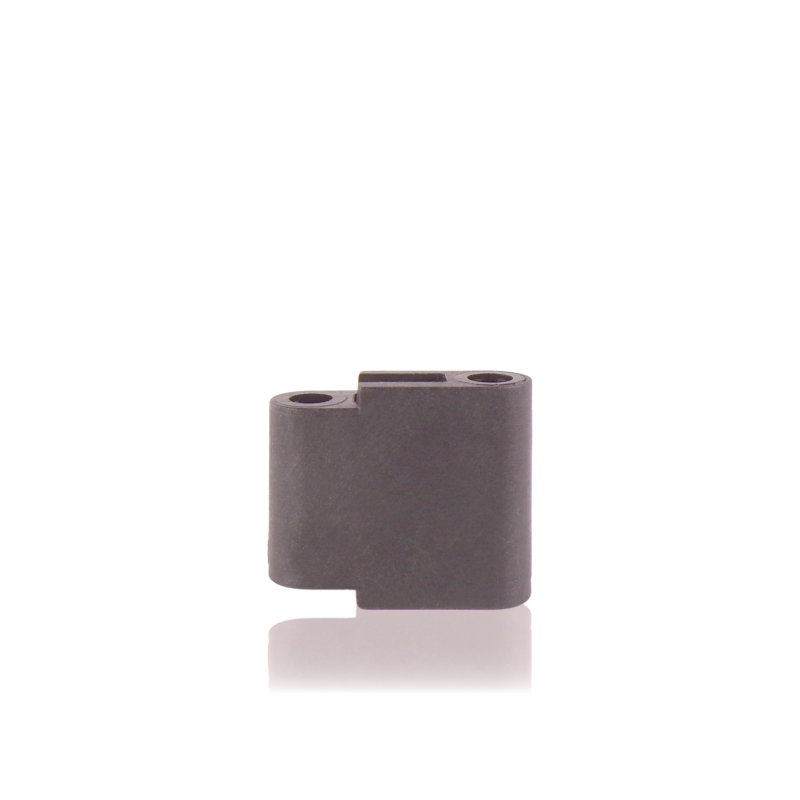

Plastic cam-shaped component, converting the rotary movement of the brake pedal into the pressing force applied by the brake pad against the wheel.

Application

The cam sits between the brake pedal (44.022) and the brake pad (44.024). When the pedal is pressed, it rotates, pushing the pad against the wheel surface and locking its rotation – thanks to the cam's shape, a small pedal movement translates into sufficient pressing force.

Symptoms – when to replace

  • The brake doesn't lock the wheel despite a sound pedal and sound brake pad.
  • The cam is cracked, chipped, or has a worn working surface.
  • Noticeable excessive play between the pedal and the pad, even with the pedal pressed fully.
  • Visible cracks in the plastic when the brake mechanism is disassembled.

How to choose the right part

Selection is based on reference number 44023 – the same cam is used across many different Kränzle series, so the catalog number is a more reliable reference than visual comparison.

When replacing the cam, also assess the condition of the pedal (44.022) and the brake pad (44.024) in the same mechanism – ineffective braking despite a new cam often results from wear on these neighboring components.

Technical data

Model

Therm 1165-1

Model

Therm 755

Model

Therm-RP 1400 ATR

Model

Therm 602 E-M 24

Model

Quadro 800 TST

Model

Therm 630

Model

Therm-RP 1600 ATR

Model

Therm 602 E-M 36

Model

Therm 1017 T

Model

E-Therm 500 M 18

Model

Therm 872 E-M 48

Model

Therm 1017

Model

E-Therm 500 M 18 T

Model

Therm 635-1

Model

Therm-RP 1400

Model

E-Therm 500 M 24

Model

Therm 875-1

Model

Quadro 1500 TS

Model

Therm-RP 1400 T

Model

E-Therm 500 M 24 T

Model

Quadro 1500 TST

Model

Therm-RP 1200

Model

E-Therm 603 M 36

Model

Therm 870-1

Model

Therm-RP 1200 T

Model

E-Therm 603 M 36 T

Model

Therm 890

Model

Quadro 1000 TS

Model

E-Therm 873 M 36

Model

Therm 1160

Model

Quadro 1200 TS

Model

E-Therm 873 M 36 T

Model

Therm 1525-1

Model

Therm-RP 1000

Model

E-Therm 873 M 48

Model

Profi-Jet B 170 T

Model

Therm-RP 1000 T

Model

E-Therm 873 M 48 T

Model

Profi-Jet B 200 T

Model

Therm-RP 1600 T

Model

Therm 750

Model

Quadro 1000 TST

Model

Profi-Jet B 230 T

Model

Therm-RP 1600

Model

Therm 895

Model

Quadro 1200 TST

Model

Profi-Jet B 240 T

Model

Therm-RP 1000 ATR

Model

Therm 1165

Model

Therm 895-1

Model

Profi-Jet B 270 T

Model

Therm-RP 1200 ATR

Model

Therm 602 E-M 18
