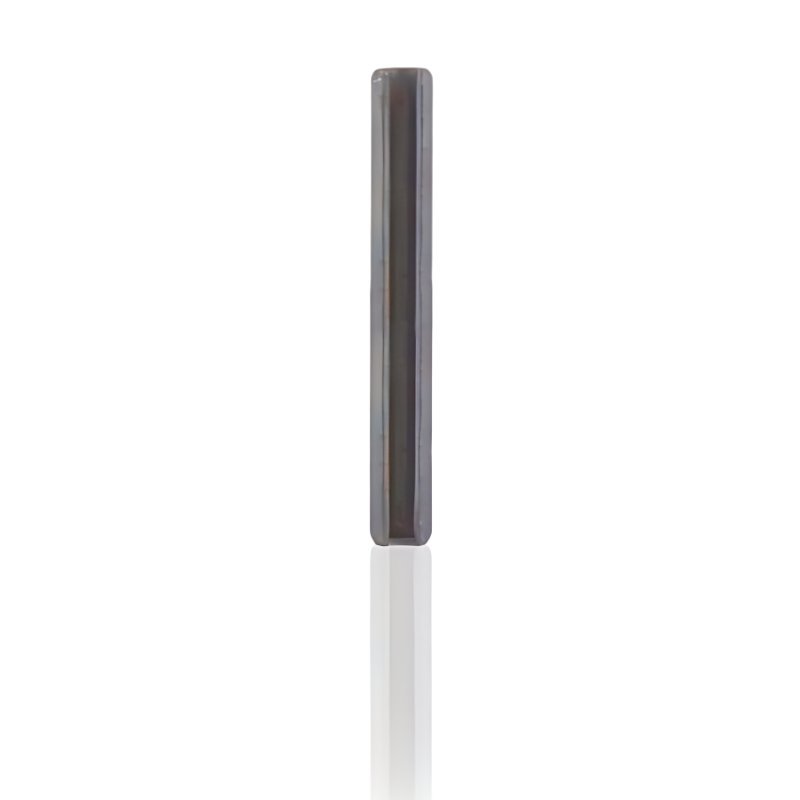

Pin 6x50mm
44035
0.6 x 5 x 0.6 cm
zł7.79
Ostatnie sztuki!
Metal pin 6x50mm, rotatably mounting the parking brake pedal. Secured with an 8mm Starlock cap.
Application
The pin rotatably mounts the brake pedal (44.022) to the base plate of the mechanism, allowing it to pivot freely when pressed. It is secured with an 8mm Starlock cap (44.165), preventing the pin from sliding out during operation of the mechanism.
Symptoms – when to replace
- Excessive play in the brake pedal's movement, despite a sound cam and brake pad.
- The pin is visibly bent, chipped, or corroded when the mechanism is disassembled.
- The pedal wobbles sideways instead of pivoting smoothly around the axle.
- Missing or damaged Starlock cap, causing the pin to shift or slide out on its own.
How to choose the right part
Selection is based on reference number 44035 and the 50mm length – the same brake mechanism uses a very similar but shorter 6x40mm pin (44.035 1) for a different application, so note the suffix on the number and don't confuse the two variants.
When replacing the pin, also assess the condition of the 8mm Starlock cap (44.165) securing it in place, as well as the condition of the pedal itself (44.022) at the pin's mounting point.
Technical data
Model
Therm 890
Model
Quadro 1000 TS
Model
E-Therm 873 M 36
Model
Therm 1160
Model
Quadro 1200 TS
Model
E-Therm 873 M 48
Model
Therm 1525-1
Model
Therm-RP 1000
Model
E-Therm 873 M 48 T
Model
Therm 755
Model
Therm-RP 1000 T
Model
Therm 750
Model
Therm 630
Model
Therm-RP 1600 T
Model
Therm 895
Model
Quadro 1000 TST
Model
Therm-RP 1600
Model
Therm 1165
Model
Quadro 1200 TST
Model
Therm-RP 1000 AT
Model
Therm 602 E-M 18
Model
Therm 895-1
Model
Therm-RP 1200 AT
Model
Therm 602 E-M 24
Model
Therm 1165-1
Model
Therm-RP 1400 AT
Model
Therm 602 E-M 36
Model
Quadro 800 TST
Model
Therm-RP 1600 AT
Model
Therm 872 E-M 48
Model
Therm 1017 T
Model
E-Therm 500 M 18
Model
Therm 635-1
Model
Therm 1017
Model
E-Therm 500 M 18 T
Model
Therm 875-1
Model
Therm-RP 1400
Model
E-Therm 500 M 24
Model
Therm 715
Model
Therm-RP 1400 T
Model
E-Therm 500 M 24 T
Model
Quadro 1500 TS
Model
Therm-RP 1200
Model
E-Therm 603 M 36
Model
Quadro 1500 TST
Model
Therm 870-1
Model
Therm-RP 1200 T
Model
E-Therm 603 M 36 T
