Check Valve Plug Junior

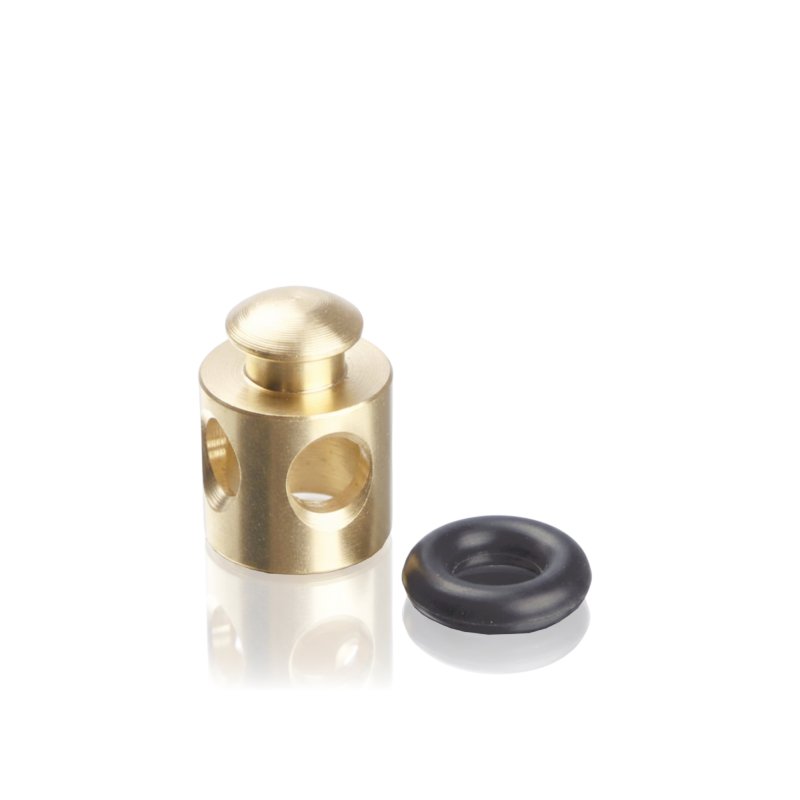

Small plug forming the check valve body, fitted in the pump. A sealing O-ring is included.

Application

The plug is part of the check valve in the pump – it prevents water from flowing back toward the pump inlet after the gun is closed, maintaining pressure in the high-pressure system.

Symptoms – when to replace

• The pressure gauge shows a pressure drop even with the gun closed – the check valve is not sealing properly.
• The pump runs unevenly or jerks on startup, which may indicate a leaking check valve.
• Visible water leak where the plug seats in the pump body.
• The O-ring on the plug is hardened, flattened or damaged.

How to choose the right part

Selection is based on reference number 43009 – the plug is designed exclusively for the AZ-type pump and does not fit AM or AQ pumps, even though all of them may contain check valves with a similar function.

When replacing, check the condition of the valve seat and the return spring in the same location – the plug with a new O-ring alone won't solve the problem if the seat or spring is damaged.

Compatibility

Kränzle Junior, K105 – AZ-type pump.

[faq]

Does the O-ring included with the plug need to be ordered separately for the next replacement, or is it available on its own?|The O-ring is part of this set and is replaced together with the plug – if the O-ring alone wears out faster than the plug, check with the seller whether the seal is available as a separate item.

The symptoms point to the check valve, but the problem persists after replacing the plug – what next?|Check the check valve ball and spring in the same seat – these are separate components working together with the plug that also wear out and can cause identical symptoms.

[/faq]
