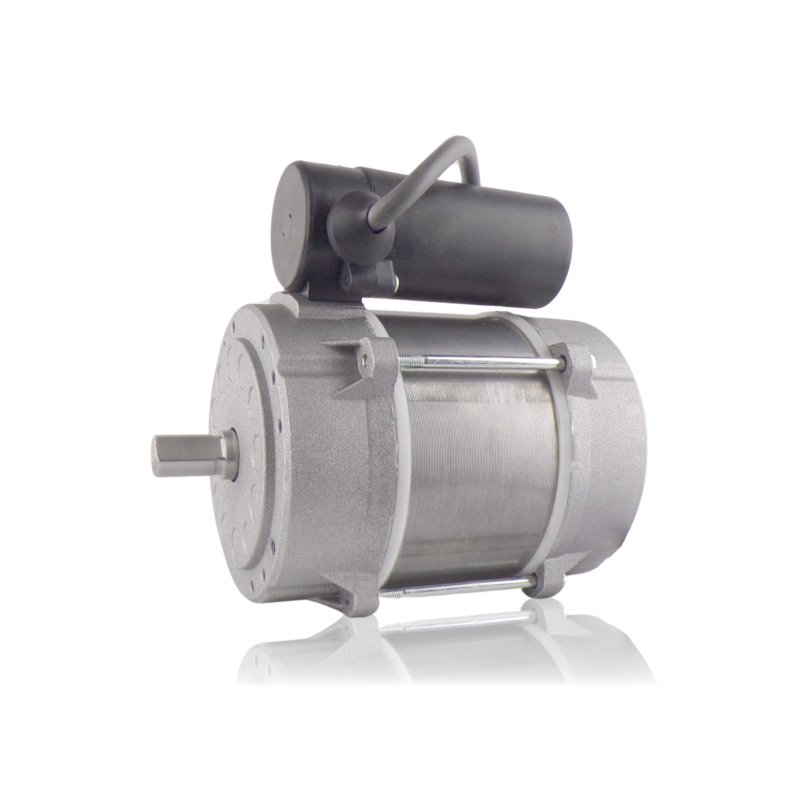

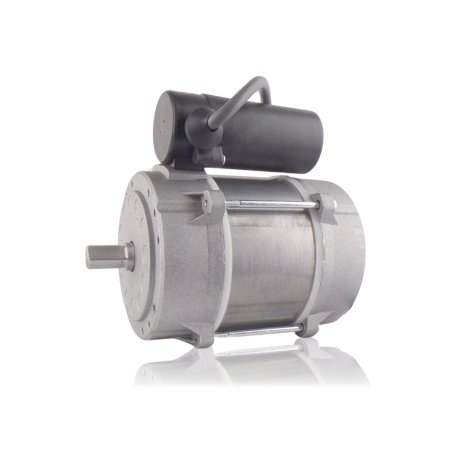

Fan Motor 180W 230V

Motor 448506 is a single-phase fan motor with a power of 180W, powered at 200–240V at 50/60 Hz, used in the Kranzle pressure washer. Rotation direction is clockwise – a critical parameter for the correct airflow direction through the ventilation system. The operating voltage of 200–240V covers both the European 230V standard and minor mains voltage variations.

Application

The motor drives the fan impeller responsible for air movement through the washer system – cooling the main motor, dissipating heat from the housing or supplying air to the combustion system, depending on the specific Kranzle model. The correct direction of rotation determines the direction of airflow – a clockwise motor replaced with a counterclockwise one will reverse the airflow and disrupt the fan function, even if it operates correctly mechanically and electrically.

Replaced when no rotation is found, uneven operation, excessive noise, or unit overheating resulting from insufficient ventilation.

Symptoms – when to replace

• Fan does not rotate despite power being supplied – damaged motor winding, short circuit or open circuit.
• Washer motor or combustion system overheats despite an intact main working circuit – the fan runs but insufficiently or in the wrong direction.
• Clearly excessive noise during fan operation – damaged motor bearings or an unbalanced impeller.
• Fan motor heats up above normal during unloaded operation – damaged winding or start capacitor in a single-phase motor.
• Noticeable play or runout on the motor shaft after removing the fan – worn bearings requiring replacement of the complete motor.

How to select the right part

Four parameters must match simultaneously: power 180W, voltage 200–240V, frequency 50/60Hz and clockwise rotation direction. Changing any one of them means a different part. Rotation direction is the most frequently overlooked parameter when ordering fan motors – always confirm it on the removed component before ordering.

Rotation direction is checked from the shaft side of the motor (not from the fan side) – the standard is to determine direction looking at the shaft from the front (from the impeller side). During disassembly, mark or photograph the impeller orientation on the shaft before removal to confirm direction during inspection.

Identify by reference number 448506. When ordering a replacement from outside the original Kranzle catalogue, compare all four parameters, including housing dimensions and motor mounting type in the washer.

Compatibility

Fan motor for Kranzle pressure washers. Voltage: 200–240V, 50/60Hz. Power: 180W. Rotation direction: clockwise. Verify the exact compatibility range by reference number 448506.

[faq]

Why is the fan motor rotation direction so important – what happens if a counterclockwise version is fitted?|The fan impeller is designed to operate in one direction of rotation – the impeller blades push air in a defined direction when rotating as designed. With reversed rotation, the impeller draws air from the opposite side instead of pushing it – airflow through the washer system is reversed. The result is insufficient cooling or disrupted airflow to the combustion system, even though the motor operates correctly electrically and mechanically.

How to check the fan motor rotation direction before ordering a replacement?|The simplest method: with the fan still running (if it still works), observe the rotation direction from the shaft side – clockwise means rotation in the direction of clock hands when looking at the shaft from the front. If the motor is not running – check the nameplate on the motor, where rotation direction is sometimes stated as CW (clockwise) or CCW (counterclockwise).

Does fan motor 448506 have a start capacitor, and should it be replaced together with the motor?|Single-phase 230V induction motors often have a start or run capacitor – with a damaged capacitor the motor may fail to start or run at reduced power and overheat. The capacitor may be mounted externally on the motor housing or internally inside the housing itself. When replacing motor 448506, check the condition of the capacitor – if the old motor was overheating or failing to start with an intact winding, the capacitor may have been the cause of the problem and should be replaced together with the motor.

[/faq]
