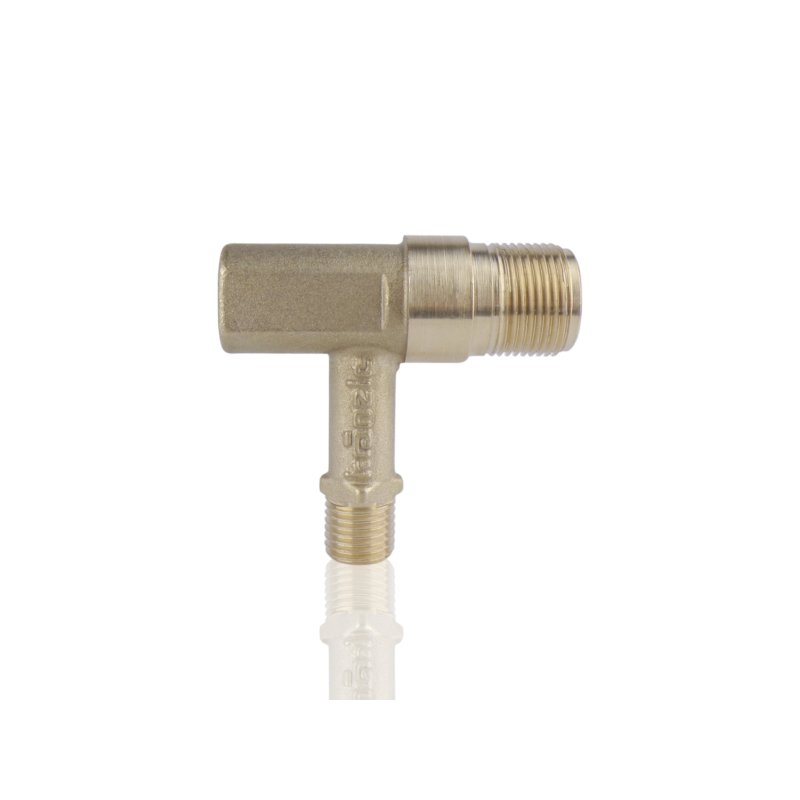

Connection Stub for Hose Reel

In a hose reel, it is the connection stub that creates the point from which a secure and leak-tight connection of the entire system begins. If this component is worn or incorrectly selected, the problem usually shows up not only as leakage, but also as difficulty in connecting the hose correctly and unstable operation of the entire assembly.

APPLICATION

The hose reel connection stub is used in hose reel and winding systems, where it is responsible for connecting the working hose to the fixed or rotating part of the assembly. It is a detail that must work reliably both mechanically and in terms of flow, because the continuity of the connection and proper transfer of the medium through the system depend on it.

In service practice, this type of component is replaced during reel repairs, leak removal, rebuilding of a damaged connection point, or after wear of the cooperating surfaces has been identified. In workshop and industrial equipment, the reel is constantly exposed to stresses resulting from unwinding and rewinding the hose, which is why the stub works under frequent load and must maintain proper seating over a long period.

SYMPTOMS - WHEN IT IS WORTH REPLACING

• leaks or seepage appear at the connection point
• the hose cannot be seated securely or the connection has play
• mechanical damage, wear, or deformation is visible on the stub
• the connection requires excessive force during installation or cannot be properly sealed
• the reel works correctly mechanically, but the problem occurs specifically at the connection point

HOW TO CHOOSE THE CORRECT COMPONENT

In the case of a connection stub, general similarity of shape is not enough. Correct selection is determined by the working diameters, part geometry, seating method, and compatibility with the specific reel in which the part is to operate. It is worth comparing the new stub directly with the removed part and checking how it cooperates with the hose and the mounting point.

Before installation, it is worth checking:

• the shape and geometry of the stub
• the connection diameters
• the seating method in the reel
• the contact surfaces and sealing points
• compatibility with the part previously used

Accurate matching is very important, because an incorrectly selected stub may cause leakage, problems with hose installation, or improper operation of the entire connection point.

COMPATIBILITY

Compatibility of this part should be assessed in relation to the specific reel assembly, not only by the part name itself. In connection stubs, the diameters, part profile, mounting method, and sealing arrangement are important. Even a visually similar part may not work correctly if it differs in the details of the connection or the range of seating in the reel body.

[faq]

Does the hose reel connection stub only serve to connect the hose?|No. In addition to the connection itself, it is also responsible for the tightness and stability of the entire working point through which the medium passes into the reel system.

How can you tell that the problem lies in the stub and not in the hose itself?|This is usually indicated by leaks exactly at the connection body, play at the seating point, or damage visible directly on the surface of the stub after disassembly.

Can a damaged stub worsen reel operation even when the winding mechanism itself works correctly?|Yes. The reel mechanics may be fully functional, yet a worn connection point can still cause leakage, flow problems, or an unstable hose connection.

What most often wears together with the connection stub?|It is worth also checking the cooperating hose, seals, contact surfaces, and fastening elements, because wear of these parts often occurs at the same time.

Will a similar stub from another reel be a suitable replacement?|This should not be assumed without verification. In such parts, the exact diameters, geometry, and seating method are decisive, not only general visual similarity.

[/faq]
