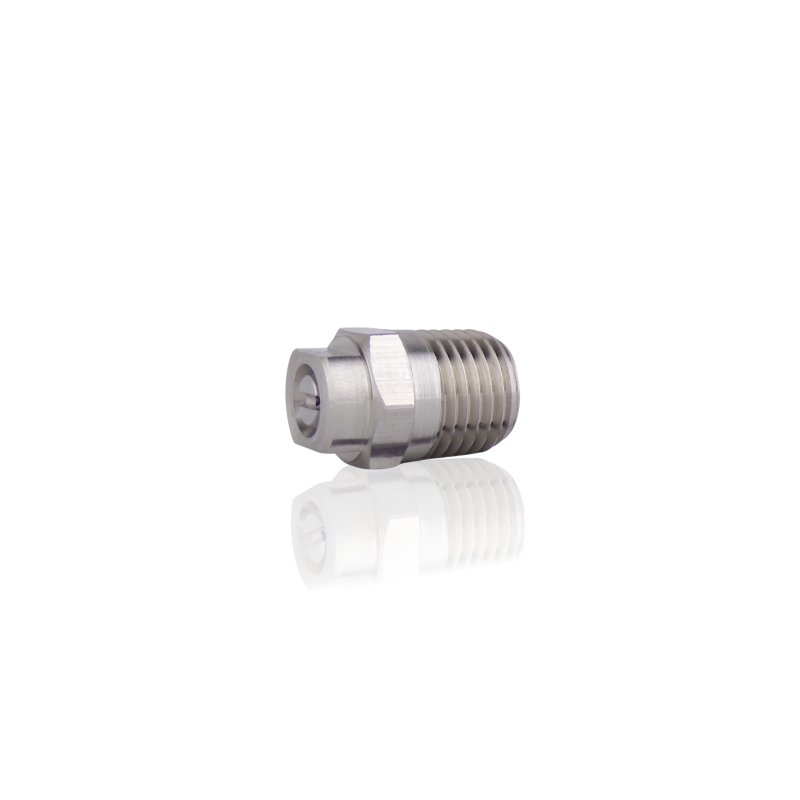

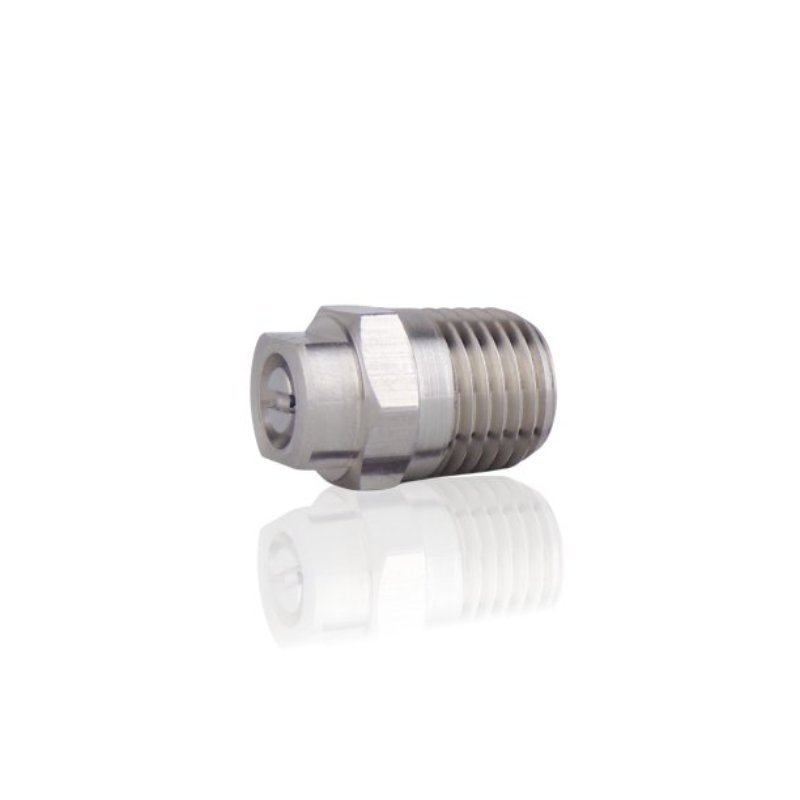

Water Nozzle 15-40 1/4"

A working jet with a 15-degree angle delivers a more concentrated water stream than wide flat-fan nozzles, which is why this type of component is used where stronger impact on the cleaned surface is required. The 15-40 version with a 1/4" thread works as the end element of the spray system and directly affects the operating characteristics of the lance or accessory.

APPLICATION

Water nozzles of this type are used in pressure washers, workshop accessories, and service applications where a precisely defined working jet is required. A 15° angle is suitable for spot cleaning, removing more stubborn dirt, and working on surfaces that require a more concentrated stream than nozzles with a wider spray angle.

The size 40 version is used in systems where flow and pressure parameters must match the equipment configuration. In service practice, such a nozzle is replaced not only after wear, but also when the operating characteristics of the accessory change or when restoration of factory spray parameters is required.

SYMPTOMS - WHEN IT IS WORTH REPLACING

• the water stream becomes irregular or distorted
• cleaning efficiency clearly drops despite correct pressure in the system
• the nozzle orifice shows signs of wear, enlargement, or damage
• sealing problems appear at the mounting point
• the nozzle has been mechanically damaged or no longer matches the required operating parameters

HOW TO CHOOSE THE CORRECT COMPONENT

When selecting a nozzle, attention should be paid to three basic parameters: connection type, spray angle, and size. In this case, the key parameters are the 1/4" thread, 15-degree angle, and size 40. Each of these parameters affects the way the system operates, so the nozzle should not be selected based only on external appearance.

Before installation, it is worth checking:

• 1/4" thread compatibility
• 15° spray angle
• size 40 nozzle
• compatibility with the lance, head, or working accessory
• parameters of the removed part

Accurate matching is important in practice, because an incorrectly selected nozzle may change the spray pattern, reduce cleaning efficiency, and affect the operation of the entire high-pressure system.

COMPATIBILITY

The compatibility of this nozzle should be assessed primarily by the technical parameters of the system, not only by the external diameter or similar shape. Compatibility is determined by the 1/4" connection type, the required spray angle, and the nozzle size specified for the given lance or accessory. The safest approach is to compare the part data with the markings on the previously used component or with the technical specification of the equipment.

[faq]

What does the 15-40 marking mean on this nozzle?|The marking refers to the nozzle’s operating parameters, including spray angle and size. In this case, 15 means a 15° spray angle, and 40 indicates the nozzle size intended for specific system parameters.

What jobs is a 15-degree nozzle suitable for?|This angle provides a more concentrated stream, which makes it suitable for more intensive cleaning and removing heavier dirt on a smaller working area.

Is a 1/4" thread enough to confirm compatibility?|No. The thread is one of the basic parameters, but the spray angle, nozzle size, and requirements of the specific working system must also be checked.

How can nozzle wear be identified?|Most often by a change in the spray pattern, reduced cleaning efficiency, leakage at the connection point, or visible damage to the working orifice.

Can a nozzle with a different angle or size be used as a substitute?|Only if the change is consistent with the requirements of the given system. A different angle or size affects the spray pattern and may significantly change the way the equipment operates.

[/faq]
