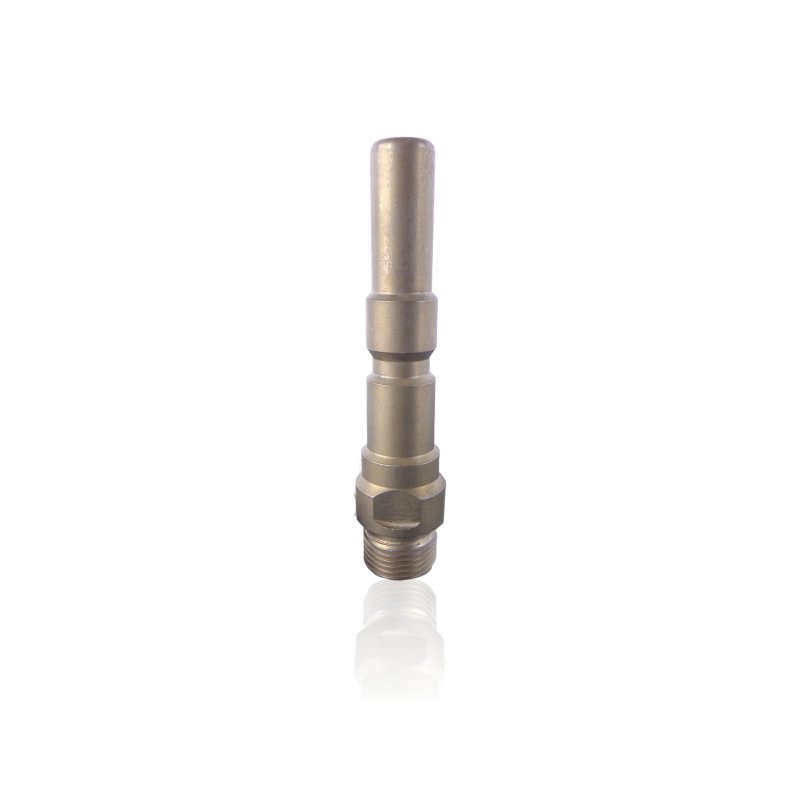

Quick coupling plug D12 - 3/8" Male

The D12 - 3/8" male quick coupling plug is a component inserted into a D12 socket, designed for fast accessory connection without using tools at every changeover. On the mounting side, it has a 3/8" male thread, so it can serve as a transition between the D12 system and 3/8" female threaded connections in adapters, nipples, or other accessory-line components.

MPN / reference: 13476
Type: D12 quick coupling plug
Thread: 3/8" male (external)

APPLICATION

The D12 plug with 3/8" male thread is used in configurations where:

• accessories need to be changed frequently (lances, adapters, working components) in the D12 standard,
• the threaded connection at that point is made in the 3/8" standard,
• you are replacing a worn plug that causes play, sticking, or leaks,
• you are building a service set and want to keep a consistent quick-coupling standard with different mounting threads.

SYMPTOMS - WHEN IT’S WORTH REPLACING

Consider replacing the plug when you notice:

• a micro-leak at the D12 connection despite proper locking in the socket,
• play at the joint (the plug “moves” when the hose is in motion),
• uneven operation during connecting/disconnecting (sticking, lack of a secure latch),
• damaged 3/8" thread (difficulty screwing into 3/8" female, cross-threading tendency),
• visible wear marks on the working part of the plug after removal.

HOW TO CHOOSE THE RIGHT PART

Selection should be based on the coupling side and the thread type:

• make sure you need a D12 plug (not a socket),
• confirm the thread on the mounting side: 3/8" male,
• verify the part number: MPN 13476,
• compare with the removed part: length, profile of the D12 working section, and transition shape,
• check the mating component: it must be a D12 socket, and on the threaded side a 3/8" female connection.

With 3/8" accessories, it is easy to confuse male and female versions - the difference usually only becomes obvious during installation, which is why the part number and direct comparison are the safest method.

COMPATIBILITY

The plug should be selected by MPN 13476 and compatibility with the D12 system and the 3/8" thread in the given accessory configuration. If reducers/adapters are used in the setup, it is worth minimizing their number - every additional connection is another potential leak point.

[faq]

Does 3/8" male mean that I screw the plug into a component with a 3/8" female thread?|Yes. Male means an external thread, so it mates with a 3/8" female (internal) thread.

Why do some setups use 3/8" instead of 1/4"?|That depends on the accessory design and the adapters used. In some parts of the system, a larger connection standard is предусмотрено, so matching the specific mounting component is what matters most.

The D12 plug locks in place, but the coupling still leaks - what is the typical cause?|Most often, wear of the working surfaces of the plug or socket, or contamination inside the coupling. The locking can work correctly while sealing has already been lost due to wear.

Can I replace a D12 3/8" male plug with another D12 plug and “solve” the thread using a reducer?|Technically, sometimes yes, but it increases the number of joints and the risk of leaks. If the system is designed for 3/8", it is safer to use the correct plug version with the proper thread.

How can I reduce wear of a D12 plug in workshop use?|Keep the coupling clean (sand acts like an abrasive), do not connect it at an angle, and do not disconnect it with the hose under tension. These are the three most common factors that wear out D12 quick couplings the fastest.

[/faq]
