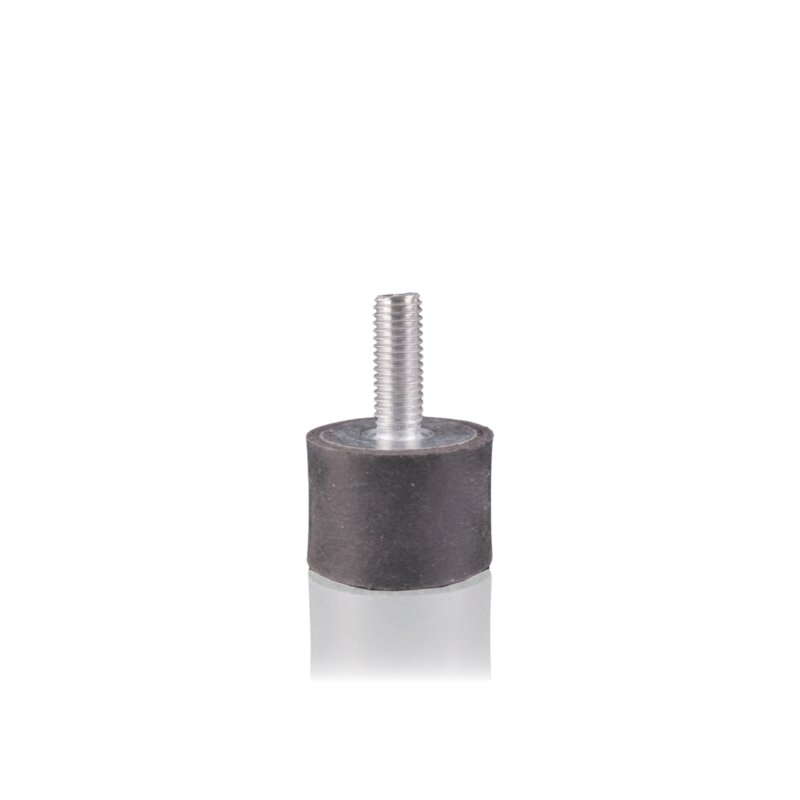

Rubber Damper 30x20mm

Rubber base foot for Kränzle HD 7/122 TS and HD 10/122 TS portable units. Fitted in a set of 4 pieces together with a 8.4 washer and a DIN985 M8 self-locking nut, it dampens vibration from the running pump and prevents the unit from shifting on smooth surfaces.

Application

The foot is mounted under the HD 7/122 TS / HD 10/122 TS frame, one at each corner of the base – 4 pieces per unit in total. The rubber buffer absorbs vibration transmitted from the pump and motor to the ground and increases the unit's grip during operation. The mounting is a set: rubber buffer, 8.4 washer, and M8 self-locking nut.

Symptoms – when to replace

• Cracked or hardened rubber – the buffer loses elasticity and stops damping vibration
• Material loss or chipping at the point of contact with the ground
• Noticeable vibration and the unit "walking" across the floor during pump operation
• Permanent deformation of the foot after prolonged standing under load
• Loose mounting nut despite tightening – often indicates crushed, overly thin rubber

How to choose the right part

• By reference number: 460231
• By size: 30 x 20 mm
• By unit model: HD 7/122 TS or HD 10/122 TS
• Mounting set: buffer + 8.4 washer (no. 50186) + DIN985 M8 nut (no. 41410) – when replacing, check the whole set, not just the rubber
• Don't confuse with the similarly named part 46023 (Gummi-Schwingmetall 30 x 20) – this is a different component, used on bully series units, not compatible with HD 7/122 / HD 10/122

[faq]

Are the Gummipuffer 460231 and the Gummi-Schwingmetall 46023 the same part?|No. Despite the similar numbers and identical 30 x 20 mm size, these are two different parts for different machines: 460231 is the base foot for HD 7/122 TS and HD 10/122 TS units, while 46023 is the wheel/axle vibration damper on the bully series. They are not interchangeable.

[/faq]
