Fuel Float Switch

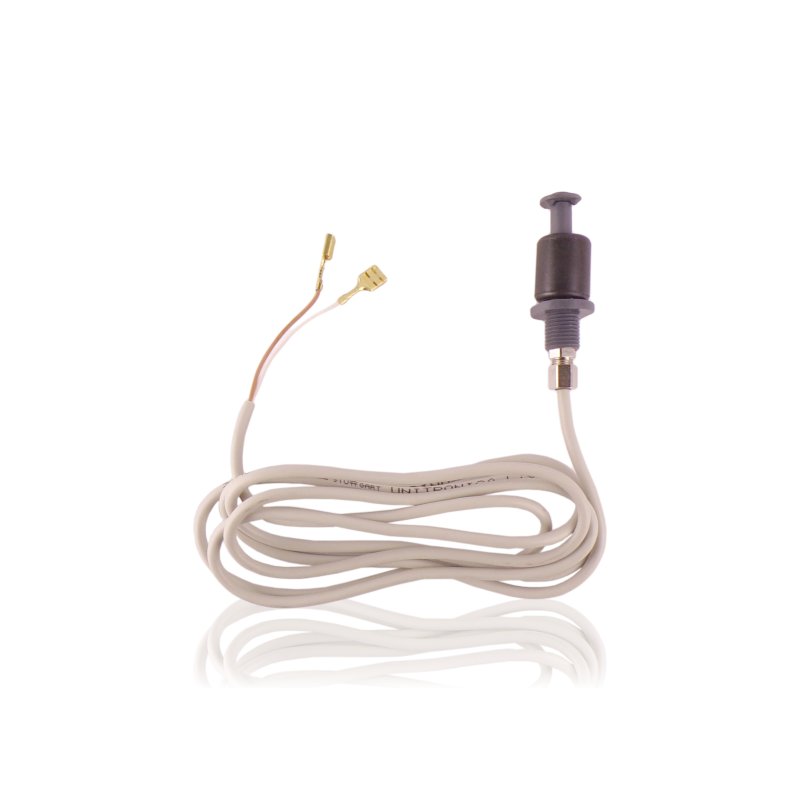

Electric float switch with 1.5m PVC cable and NBR float, fitted in the burner fuel tank. Signals a low or empty fuel level.

Application

The float is fitted in the burner fuel tank, near the fuel supply cover. It detects a drop in fuel level and sends an electrical signal to the control system, preventing the fuel pump from running dry when the tank is empty.

Symptoms – when to replace

• The burner doesn't signal a low fuel level despite an empty or nearly empty tank.
• False low-fuel signals despite a full tank.
• The float is visibly damaged, cracked, or doesn't move freely on its guide.
• Broken or damaged PVC cable at the point where it passes through the tank cover.

How to choose the right part

Selection is based on reference number 44014 – it's worth comparing with the removed float for cable length (1.5m) and the mounting method in the fuel tank cover.

When replacing, also check the condition of the fuel supply cover's rubber gasket (Gummidichtung) at the same location – a leak there can let contaminants into the fuel tank.

[faq]

Does this float relate to the water level or the fuel level in the burner?|It relates exclusively to the fuel level in the tank supplying the burner – a separate system from the water buffer tank, even though the term "float" is often associated mainly with water.

The burner doesn't start despite a full fuel tank – could this float be the cause?|Yes, a damaged float or one hanging in the wrong position can falsely signal an empty tank, blocking the burner from starting despite a full tank – worth checking before looking for other causes.

[/faq]
