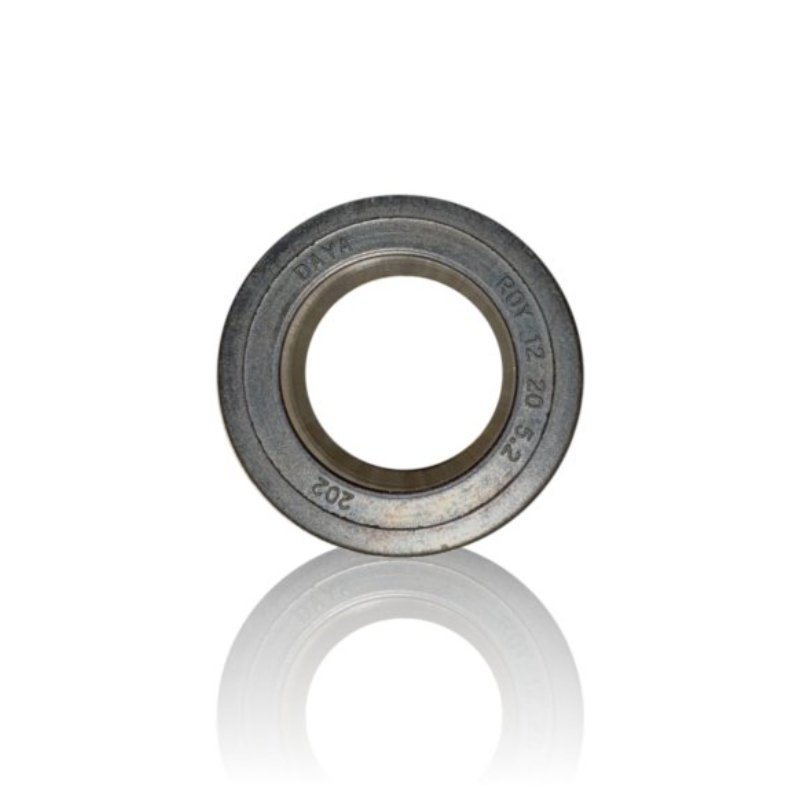

Sealing Sleeve 12mm

The soft 12 mm 12x20x5.2 seal is a sealing element used in pressure washer pump assemblies, where correct seating in the gland and stable operation under load are important. In service practice, it is used during repairs of the high-pressure system when a worn seal causes loss of tightness and deterioration of operating parameters.

MPN / reference: 49226
Size: 12x20x5.2
Type: soft seal

APPLICATION

The seal is used in typical service work:

• sealing pump components in the hydraulic section,
• repairing leaks around sealing seats,
• rebuilding assemblies during inspection or pump overhaul,
• replacing worn seals in systems operating under pressure.

SYMPTOMS - WHEN REPLACEMENT IS RECOMMENDED

It is worth considering replacement of the seal when the following appear:

• water leaks around the pump housing or sealing seat,
• drop in working pressure after other causes have been ruled out,
• flattening, deformation, or damage to the sealing edge after disassembly,
• recurring leakage despite previous service,
• signs of wear indicating incorrect operation in the gland.

HOW TO CHOOSE THE RIGHT COMPONENT

Selection of the seal should be done precisely:

• verify the 12x20x5.2 size,
• confirm the manufacturer number: MPN 49226,
• compare with the removed part: profile, height, and seating method.

With pump seals, even a small dimensional difference may affect tightness and repair durability.

COMPATIBILITY

The seal should be selected based on MPN 49226 and the 12x20x5.2 size, according to the parts list for the specific assembly. The part should not be selected solely by the general description “12 mm seal” without confirmation of compatibility in the service documentation.

[faq]

How is a soft seal different from other seals used in a pump?|A soft seal works as a sealing element in a specific gland and has a defined working profile. Compared with simple sealing rings, its geometry is more important for maintaining tightness under pressure.

Does the 12x20x5.2 size need to be checked precisely down to tenths of a millimeter?|Yes. With pump seals, even a small difference in height or diameter can affect tightness and the way the seal works in the gland.

What most often damages a seal in a pressure washer?|Most often, contaminants in the water, a worn gland, a damaged cooperating surface, or incorrect installation causing twisting or cutting of the seal.

When replacing the seal, is it worth checking other pump elements too?|Yes. In service practice, the condition of the piston, gland, guiding surfaces, and other seals is also checked, because wear of one element often affects the durability of the others.

How can I tell that the new seal has been installed correctly?|After installation, the system should remain tight, and a test run should show no leaks or unstable pressure. It is also important that the seal is seated evenly and without deformation.

[/faq]
