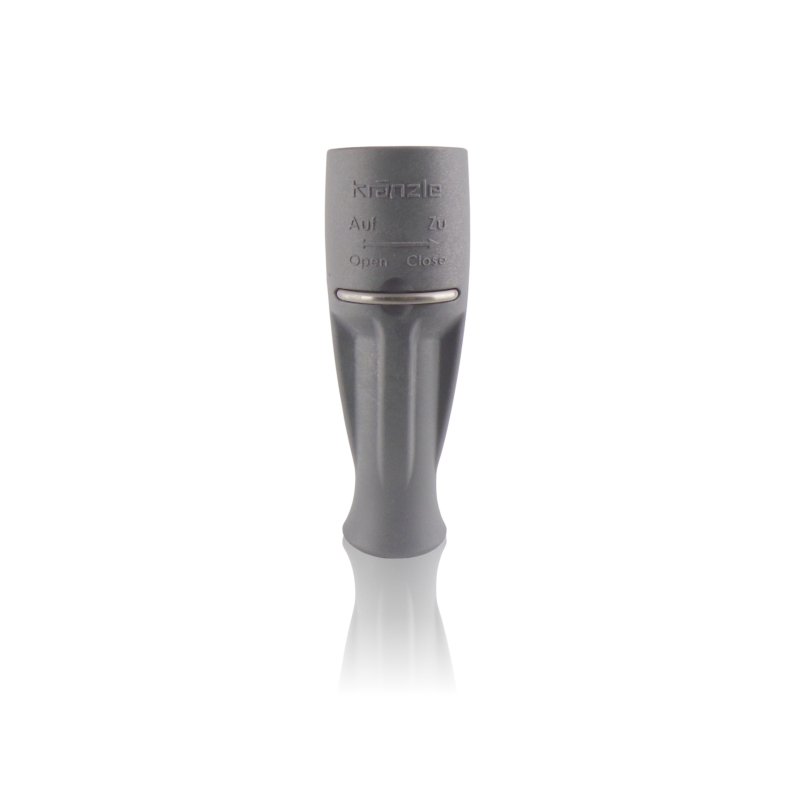

Hose end DN06 M22×1.5

The DN06 hose end 22×1.5 swivel assembly is a complete connection set for a DN06 high-pressure hose, equipped with a swivel element (anti-twist), protective cover, and retaining clip. This type of set is used when the hose end is worn, leaking, or mechanically damaged and the repair should restore full functionality at once: tight connection, secure mounting, and smoother hose operation without transferring twist into the joint.

MPN / reference: 134201
Standard: DN06
Thread: 22×1.5 (M22×1.5)
Version: swivel assembly with cover and retaining clip

APPLICATION

The complete hose end is especially useful in hose and accessory service work:

• replacing a DN06 hose end after thread wear or leakage,
• restoring an anti-twist end in systems with dynamic operation (frequent handling, winding/unwinding),
• repairing a hose after damage to the cover or safety components,
• upgrading a connection to a swivel assembly where hose twisting damages fittings.

SYMPTOMS - WHEN IT’S WORTH REPLACING

Replacement of the complete assembly is justified when you notice:

• leakage near the hose end despite correct tightening,
• play at the connection or unreliable retention of the cover/locking elements,
• hose twisting that causes resistance at the connection and accelerates thread wear,
• cracked cover or damaged retaining clip (connection operating without proper protection),
• damage caused by dropping the hose, dragging it on the ground, or working in harsh conditions.

HOW TO CHOOSE THE RIGHT PART

Selection of the hose end should be specific and verifiable:

• confirm that the hose standard is DN06 (determines compatibility with the hose),
• verify the connection thread M22×1.5 (22×1.5),
• confirm that a swivel version is required and that it should include the cover and retaining clip,
• verify the manufacturer number: MPN 134201,
• compare with the removed part: length, hose mounting method, and the connection type on the equipment/accessory side.

For swivel assemblies, the rotating element must operate smoothly. Choosing a different variant may lead to problems such as insufficient clearance for the cover or incompatibility with the handle/locking components.

COMPATIBILITY

Select the hose end by MPN 134201 and compatibility with DN06 hoses and M22×1.5 threads in the given accessory configuration. Because M22 accessories exist in several variants with different sealing geometry, comparing with the removed part is the most reliable method of confirming compatibility.

[faq]

Why choose a complete set with cover and retaining clip instead of a “bare” hose end?|Because the cover protects the fitting from impacts and abrasion, while the retaining clip keeps the locking elements in the correct position. In practice this reduces failures caused by play and mechanical damage.

Does a swivel hose end really reduce hose twisting?|It reduces the transfer of twist into the connection. The hose can still bend and move, but the swivel allows the joint to release torsion, reducing load on threads and seals.

I have a leak at the hose end - how do I know the hose end itself is the problem?|If the leak occurs directly at the hose end and persists despite proper tightening, and the thread or swivel shows play or wear, the hose end is the likely cause. It is still worth checking the seat and sealing in the mating component.

Are DN06 and M22×1.5 enough for selection?|They are the basic parameters, but swivel assemblies also differ in design (cover, clip, connector geometry). The safest choice is by MPN 134201 and comparison with the removed part.

How can I extend the service life of a new hose end?|Avoid jerking the hose at the connection, do not drag the fitting over sharp edges, keep threads clean, and avoid cross-threading. In mobile work, routing the hose so it doesn’t bend sharply right at the fitting also helps.

[/faq]
