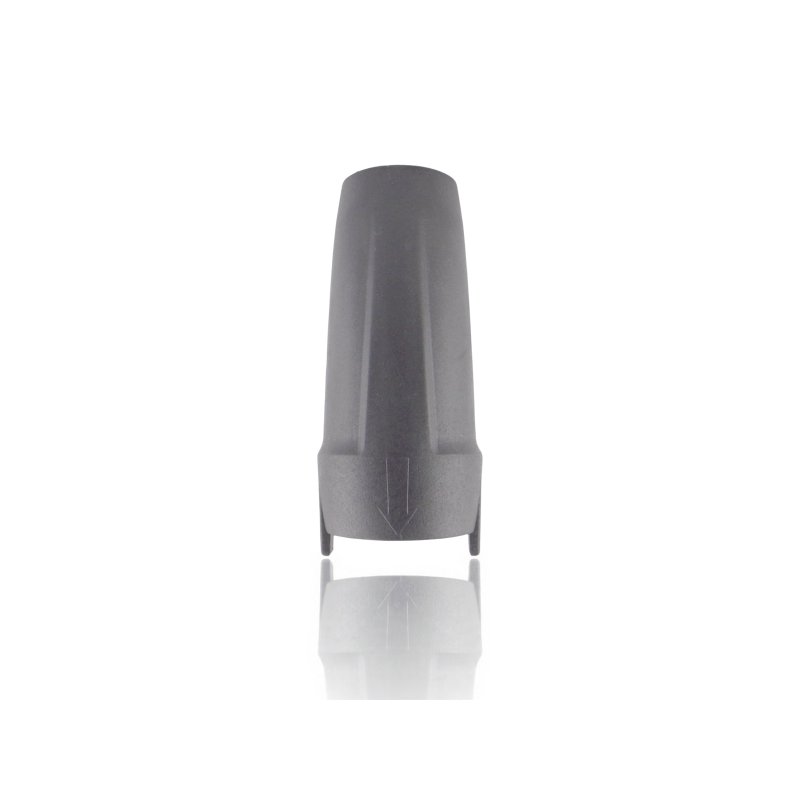

Quick coupling socket D12 - 3/8" Female

The D12 - 3/8" female quick coupling socket is a connection component in the D12 system, intended for quick accessory connection by inserting a D12 plug. The mounting side has a 3/8" female thread, which allows the socket to be screwed onto a component with a 3/8" male thread or used in adapters and fittings of that standard.

MPN / reference: 13452
Type: D12 quick coupling socket
Thread: 3/8" female (internal)

APPLICATION

The D12 socket with 3/8" female thread is used in accessories where the connection must be quick and repeatable:

• mounting D12 connections in the hose, gun, or adapter line (depending on configuration),
• replacing the socket when the working part is worn and loses tightness,
• building a service station where lances/nozzles are frequently swapped,
• matching D12 accessories to components equipped with a 3/8" male thread.

SYMPTOMS - WHEN IT’S WORTH REPLACING

Replacing the socket makes sense when the following occurs:

• leakage at the quick coupling despite correct insertion of the plug,
• play in the D12 connection or insecure retention under load,
• binding of the mechanism (the plug enters with difficulty or does not lock evenly),
• damaged 3/8" thread (lack of axial alignment, “skipping” during tightening),
• visible wear on the working surfaces of the socket (scratches, pitting).

HOW TO CHOOSE THE RIGHT PART

Choose it based on matching standards:

• confirm that you need a D12 socket (not a plug),
• confirm the thread: 3/8" female (internal),
• verify the part number: MPN 13452,
• compare it with the removed part: length, D12 profile, and sealing method,
• make sure the mating part is a D12 plug, not a D10.

In practice, many sealing problems result from mixing standards or wear of the plug-socket pair, so it is worth checking both parts.

COMPATIBILITY

The socket should be selected by MPN 13452 and compatibility of the D12 standard and 3/8" female thread with the specific accessory. If the mounting side uses 3/8" in several variants, the safest method is to confirm the fit by comparing with the removed part.

[faq]

What is a 3/8" thread used for in pressure-washer accessories, since 1/4" and M22 are more common?|A 3/8" thread is used in some adapters and fittings where a different connection than 1/4" is required. The key is matching the specific mounting component, not the “popularity” of the thread.

Does 3/8" female mean that the other side must be 3/8" male?|Yes. Female means an internal thread, so it mates with a 3/8" male (external) thread.

How can I tell the difference between a leak from the 3/8" thread and a leak at the D12 quick coupling?|A thread leak usually appears at the base of the threaded connection, while a D12 leak appears in the area where the plug is inserted. Drying the area and doing a short pressure test quickly shows the source.

Can play in D12 be “fixed” by pushing harder or tightening more?|No. Play results from worn geometry or sealing surfaces. Excessive force usually accelerates wear and can damage the working elements.

What can I do so the D12 socket does not bind during disconnecting?|Work with clean couplings, do not disconnect under hose tension, and regularly remove sand/dust from the mechanism area. Binding in D12 is very often caused by dirt, not only by damage itself.

[/faq]
