Piston Spring 3,4x36x58mm

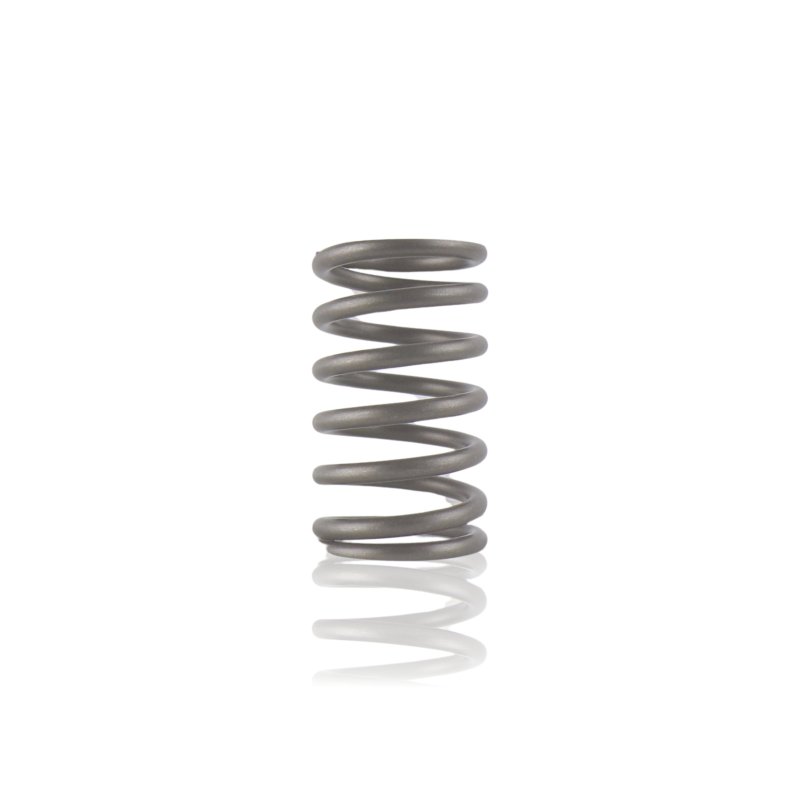

Spring 41033 with dimensions 3.4x36x58mm operates in the piston spring assembly of the Kranzle pressure washer pump. It returns the piston to its starting position after each working stroke. Dimensions: 3.4mm is the wire diameter, 36mm is the external coil diameter, 58mm is the free length unloaded. Despite the identical external diameter of 36mm, spring 41033 differs from variants 40453 (4.5x36x63mm) and 40506 (4.7x36x69mm) in both thinner wire and shorter free length – which results in a lower piston return force, matched to the specific pump characteristic.

Application

The spring is mounted in the piston cylinder of the pump in the sequence: thrust washer → spring → pressure disc → piston → retaining ring. It sits between the thrust washer in the cylinder seat and the pressure disc at the piston. With each pump shaft rotation it provides an even, rhythmic piston return. The thinner 3.4mm wire at the same external diameter of 36mm means lower spring rate – this is not a weakened variant, but one intentionally matched to a pump with a corresponding hydraulic characteristic.

Replaced during pump head service – when dismantling the piston assembly, replacing seals, or after identifying pressure irregularities not related to valves or seals.

Symptoms – when to replace

• Irregular working pressure – rhythmic pulsation proportional to engine speed, not related to valves or piston seals.
• Free length shorter than 58mm when measuring the removed spring – material fatigue without visible cracking.
• Visible coil deformation, cracking or uneven coil pitch on inspection after removal.
• Rhythmic knocking from the pump head area – particularly on cold start and with play in the cam assembly already ruled out.
• Drop in maximum pressure without an obvious cause on the valve, seal or nozzle side.

How to select the right part

Selection must be based on all three dimensions simultaneously: wire 3.4mm, external diameter 36mm, free length 58mm. The identical external diameter of 36mm means that springs 41033, 40453 and 40506 physically fit in the same cylinder – the difference only becomes apparent in the piston return force and working length after installation. Fitting a spring with the wrong wire diameter or free length changes the piston return force and disrupts the pump's operating parameters.

Before ordering, measure the removed spring with a calliper: free length after removal from the pump, external coil diameter and wire diameter. The 1.1mm difference between wire 3.4mm and 4.5mm (40453) is clearly felt when comparing, but requires calliper measurement when working with a single spring without a reference.

In multi-cylinder pumps – if one spring shows wear, the others are usually in a similar condition. Replacing the full set during a single disassembly is more practical than returning to the pump a few months later.

Compatibility

Service part for piston pumps of Kranzle pressure washers. Verify the exact compatibility range by reference number 41033 and dimensions 3.4x36x58mm. Not a substitute for springs 40453 (4.5x36x63mm) or 40506 (4.7x36x69mm) despite the identical external diameter of 36mm.

[faq]

What practically changes when fitting spring 41033 (wire 3.4mm) instead of 40453 (4.5mm) in a pump with an identical cylinder bore?|A thinner wire of 3.4mm at the same external diameter means a lower spring rate at the same compression. A pump with too weak a spring has a slower and less reliable piston return – particularly at high speed or under low suction pressure. The result: irregular operating rhythm, tendency to cavitate with restricted water inflow and risk of an incorrect suction cycle. A pump with too strong a spring (e.g. 40453 in place of 41033) has excessive pre-tension, which can cause increased load on the cam mechanism and accelerated bearing wear.

How to check spring fatigue if it is neither cracked nor visibly deformed?|Measure the free length of the removed spring and compare it with the nominal value of 58mm. A reduction of 2mm or more indicates material fatigue – the spring no longer generates the nominal contact force at the same working length. Also check the uniformity of coil pitch in raking light – uneven coil spacing in an apparently intact spring also indicates material fatigue. Spring 41033 with the thinner 3.4mm wire is more susceptible to fatigue than the thicker variants 40453 and 40506 over a comparable period of use.
