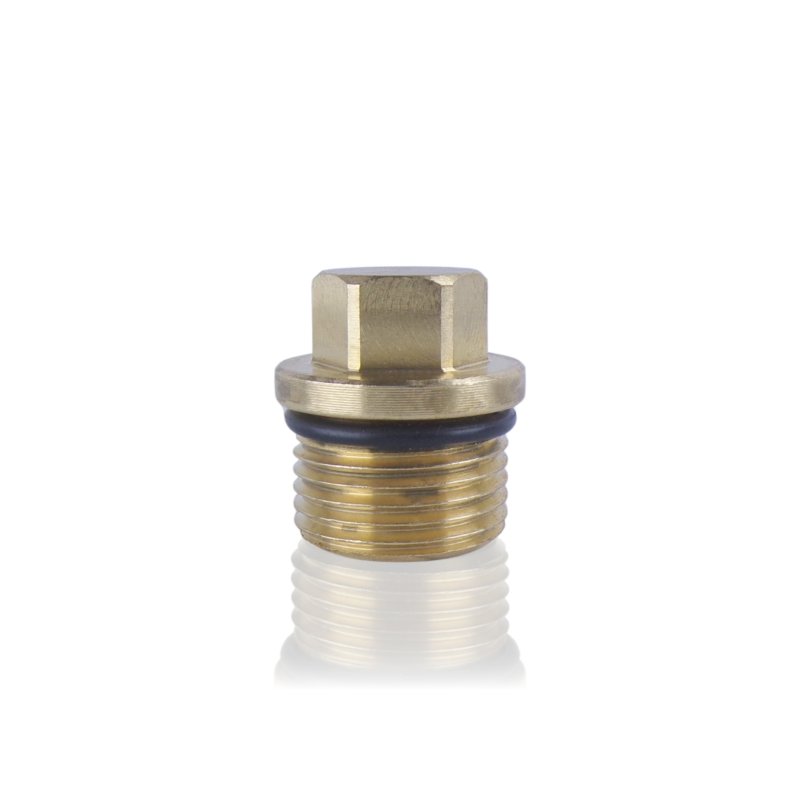

Valve Plug M18x1.5 AG

Plug 41011 is a component closing a valve channel in the valve block of the Kranzle pressure washer pump, with an external thread M18x1.5 (designation AG – Außengewinde). Screwed into the valve block bore, it closes off access to the inside of the channel from the outside, while maintaining the seal of the circuit under working pressure.

Application

The plug is mounted in the valve block bore of the pump, where it closes a channel leading into the interior of the valve assembly. The specific mounting position – which of the valve channels (suction, delivery) this plug closes in a given pump model – depends on the valve block design and requires confirmation on the disassembled pump. The plug carries the pump's full working pressure at its mounting position.

Replaced during valve block repair, when there is a leak in the M18x1.5 thread area, or in the case of mechanical damage to the plug preventing a secure fit.

Symptoms – when to replace

• Water leak at the M18x1.5 thread – under working pressure or immediately after it drops.
• Damaged thread – the plug does not screw smoothly into the valve block bore or shows play after tightening to the nominal torque.
• Damaged wrench seat in the plug – secure removal or tightening with a tool is no longer possible.
• Visible corrosion or pitting on the plug surface – particularly in the area of contact with the seal, if present.

How to select the right part

The primary selection parameter is the external M18x1.5 thread and reference number 41011. Before ordering, confirm that the thread matches the bore in the valve block of the disassembled pump – measuring the external thread diameter and comparing the pitch with a calliper allows the selection to be verified even when the marking on the original plug is illegible.

If the plug has a seal (O-ring, washer) – check its presence and condition during disassembly. There is no information available regarding the seal type – do not assume its type without verification on the physical component.

Identify primarily by reference number 41011 – for valve block parts with similar thread dimensions, the catalogue number is a more reliable basis for selection than the thread alone.

Compatibility

Component of the valve block for Kranzle pressure washer pumps, external thread M18x1.5. Verify the exact compatibility range – including the specific model and mounting position in the valve block – by reference number 41011 and comparison with the removed component.

[faq]

How to tell whether a leak comes from the plug or from the seat in the valve block?|Wipe the area around the plug dry and run the pump for a few minutes with the gun open. If water appears exactly at the plug thread – the problem lies in the seal of the plug itself or its thread. If water appears deeper, at the point of contact between the plug and the block material, the thread in the valve block itself may be damaged – replacing the plug will not solve the problem in that case, and the condition of the thread in the block needs to be assessed.

Does the tightening torque of the plug matter, or is it enough to tighten it "firmly"?|With threads in pump valve blocks, overtightening can damage the thread in the block material (particularly with aluminium blocks), while undertightening will not provide a seal under working pressure. If you have technical documentation specifying a torque for this connection – use it. Without such documentation, tighten to the resistance typical for an M18 thread in the block material, without excessive force – perceptible resistance with a torque wrench is a safer method than tightening "by feel".

Can plug 41011 be replaced with a standard M18x1.5 hydraulic plug from an industrial catalogue?|Geometrically, the M18x1.5 thread is a standardised thread and a standard plug with the same thread may fit. The difference may concern thread length, wrench seat shape, the presence of a groove for a seal, or the plug material – these factors affect the tightness and durability of the connection in the pump's pressure circuit. Without the ability to compare these parameters with the original 41011, it is safer to use the original part, particularly at points directly exposed to working pressure.

How to tell that the thread in the valve block is damaged and plug 41011 alone will not solve the leak problem?|Unscrew the old plug and examine the thread in the valve block bore – it should be regular, without torn or flattened threads. Screw the new plug in by hand, without a wrench – if it enters with noticeable play from the first turns or does not grip the thread correctly, the thread in the block is damaged. In such a case, a solution may be a thread insert (helicoil) sized for M18x1.5, or – with more serious damage – replacement of the entire valve block.

[/faq]
